B82498F3331J000
lmages are for reference only.B82498F3331J000
FIXED IND 330NH 220MA 1.5OHM SMD
DatasheetNonstandard
14,306 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
330 nH Unshielded Drum Core, Wirewound Inductor 220 mA 1.5Ohm Max Nonstandard
B82498F3331J000
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | EPCOS - TDK Electronics |
| Series | SIMID |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ceramic |
| Inductance | 330 nH |
| Tolerance | ±5% |
| Current Rating (Amps) | 220 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 1.5Ohm Max |
| Q @ Freq | 45 @ 250MHz |
| Frequency - Self Resonant | 800MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | 0805 (2012 Metric) |
| Size / Dimension | 0.091" L x 0.067" W (2.30mm x 1.70mm) |
| Height - Seated (Max) | 0.055" (1.40mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

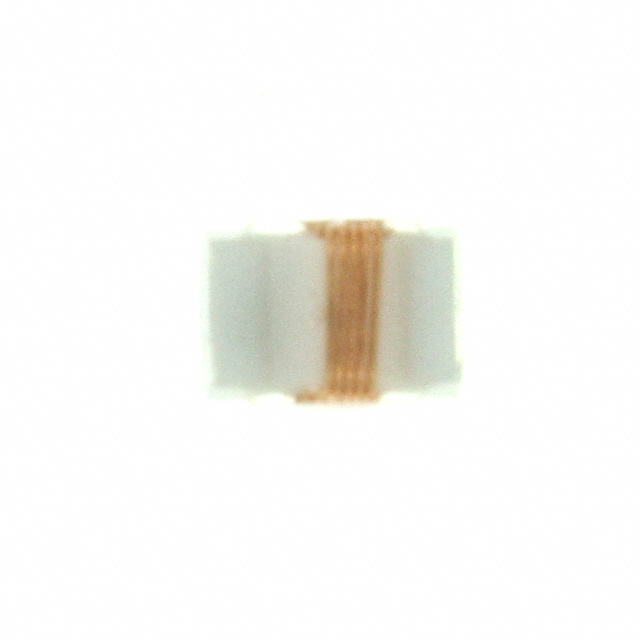

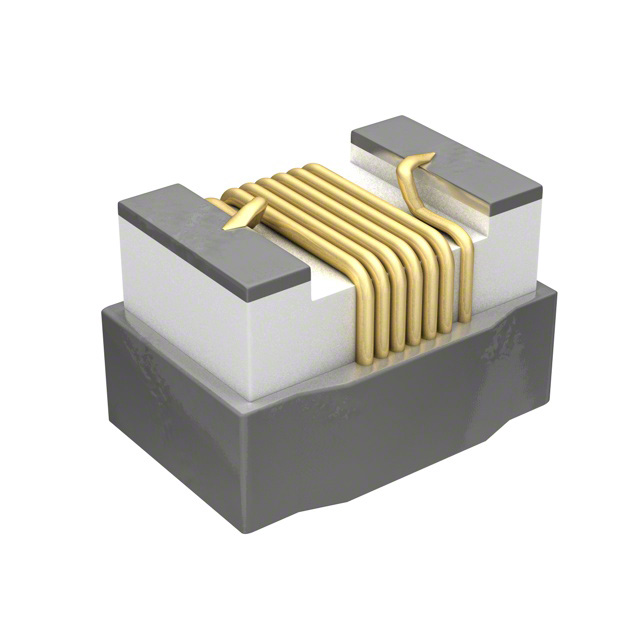

| Part Number | B82498F3331J001 | B82498F3330G000 | B82498F3330G001 | B82498F3330J000 |
| Manufacturer | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 330NH 220MA 1.5OHM SMD | FIXED IND 33NH 600MA 110MOHM SMD | FIXED IND 33NH 600MA 110MOHM SMD | FIXED IND 33NH 600MA 110MOHM SMD |
| Series | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
