B82723A2601N001
lmages are for reference only.B82723A2601N001
CMC 47MH 600MA 2LN TH
DatasheetHorizontal, 4 PC Pin
81,621 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
47 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 600mA DCR 1.65Ohm (Typ)
B82723A2601N001
| Category | Filters - Common Mode Chokes - |
| Manufacturer | EPCOS - TDK Electronics |
| Series | B82723 |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Filter Type | Power Line |
| Number of Lines | 2 |
| Inductance @ Frequency | 47 mH @ 10 kHz |
| Current Rating (Max) | 600mA |
| DC Resistance (DCR) (Max) | 1.65Ohm (Typ) |
| Voltage Rating - DC | - |
| Voltage Rating - AC | 250V |
| Operating Temperature | -40°C ~ 125°C |
| Ratings | - |
| Approval Agency | UR |
| Features | - |
| Mounting Type | Through Hole |
| Size / Dimension | 1.102" L x 1.063" W (28.00mm x 27.00mm) |
| Height (Max) | 0.661" (16.80mm) |
| Package / Case | Horizontal, 4 PC Pin |
| Base Product Number | - |
| Impedance @ Frequency | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

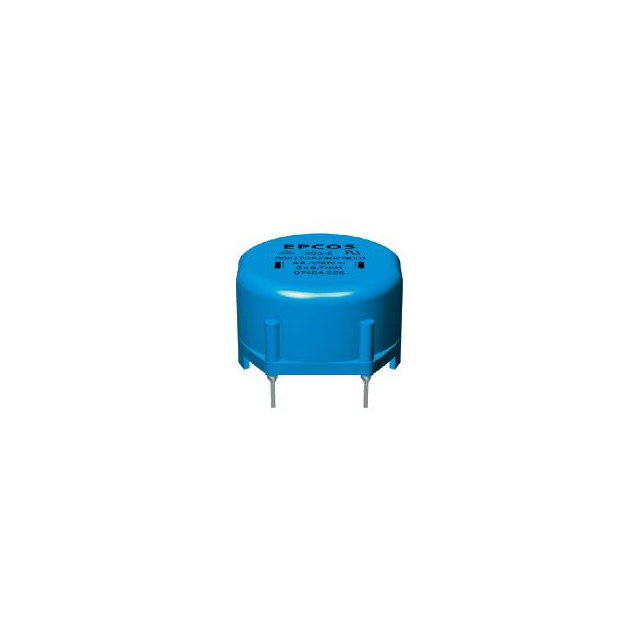

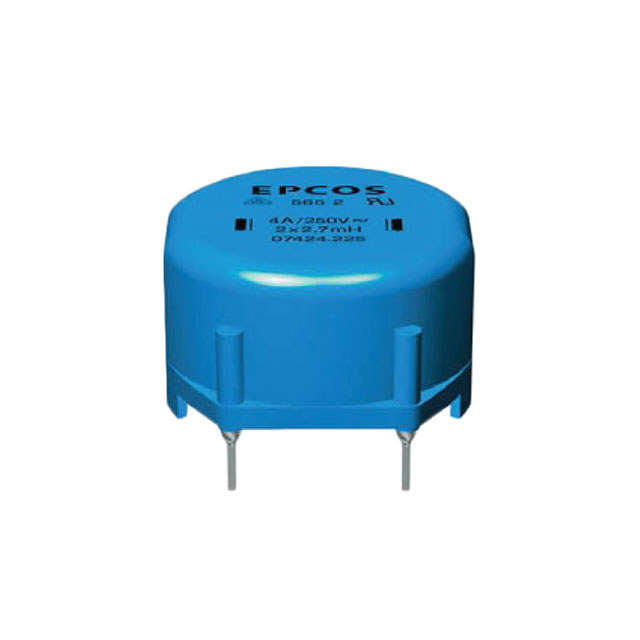

| Part Number | B82723A2601N002 | B82723A2602N001 | B82720A2102N040 | B82720A2152N040 |
| Manufacturer | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CMC 39MH 600MA 2LN TH | CMC 1MH 6A 2LN TH | CMC 3MH 1A 2LN TH | CMC 1.6MH 1.5A 2LN TH |
| Series | B82723 | B82723 | B82720 | B82720 |
| Packaging | Tray | Tray | Tray | Tray |
