2.2 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 16A DCR 7.1mOhm (Typ)
B82726S2163N030
| Category | Filters - Common Mode Chokes - |
| Manufacturer | EPCOS - TDK Electronics |
| Series | B82726 |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Filter Type | Power Line |
| Number of Lines | 2 |
| Inductance @ Frequency | 2.2 mH @ 10 kHz |
| Current Rating (Max) | 16A |
| DC Resistance (DCR) (Max) | 7.1mOhm (Typ) |
| Voltage Rating - DC | - |
| Voltage Rating - AC | 250V |
| Operating Temperature | -40°C ~ 125°C |
| Ratings | - |
| Approval Agency | - |
| Features | - |
| Mounting Type | Through Hole |
| Size / Dimension | 1.969" L x 0.906" W (50.00mm x 23.00mm) |
| Height (Max) | 1.929" (49.00mm) |
| Package / Case | Vertical, 4 PC Pin |
| Base Product Number | - |
| Impedance @ Frequency | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | B82726S2163N002 | B82726S2183N020 | B82720A2102N040 | B82720A2152N040 |
| Manufacturer | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics | EPCOS - TDK Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

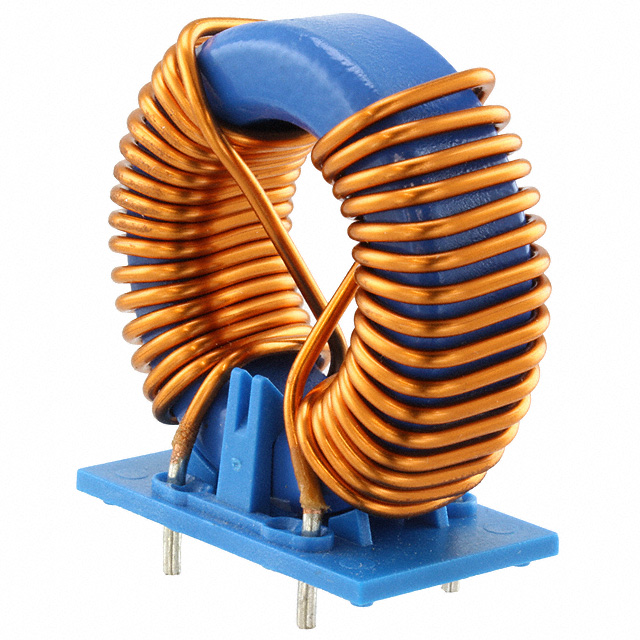

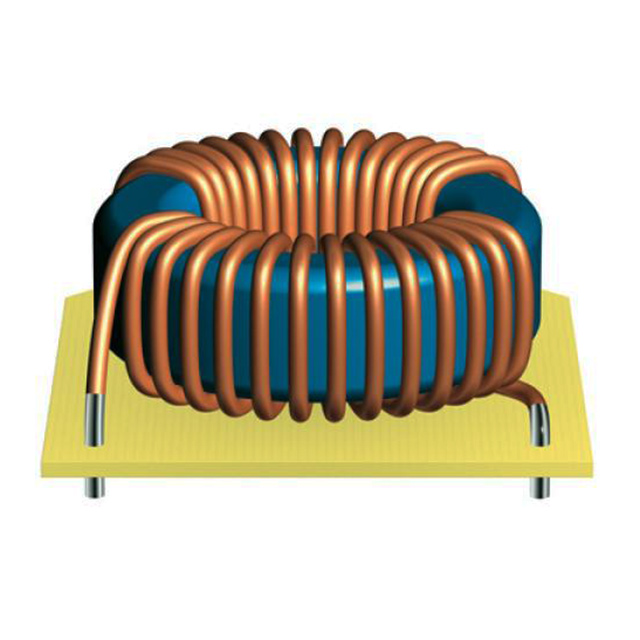

| Description | CMC 1.4MH 16A 2LN TH | CMC 1.3MH 18A 2LN TH | CMC 3MH 1A 2LN TH | CMC 1.6MH 1.5A 2LN TH |
