BAP64-05W-TP
lmages are for reference only.BAP64-05W-TP
RF DIODE PIN 175V 200MW SOT323
DatasheetSC-70, SOT-323
32,427 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
RF Diode PIN - 1 Pair Common Cathode 175V 100 mA 200 mW SOT-323
BAP64-05W-TP
| Category | Discrete Semiconductor Products - Diodes - RF Diodes |
| Manufacturer | Micro Commercial Co |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Base Product Number | BAP64-05 |
| Diode Type | PIN - 1 Pair Common Cathode |
| Voltage - Peak Reverse (Max) | 175V |
| Current - Max | 100 mA |
| Capacitance @ Vr, F | 0.35pF @ 20V, 1MHz |
| Resistance @ If, F | 1.35Ohm @ 100mA, 100MHz |
| Power Dissipation (Max) | 200 mW |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Package / Case | SC-70, SOT-323 |
| Supplier Device Package | SOT-323 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

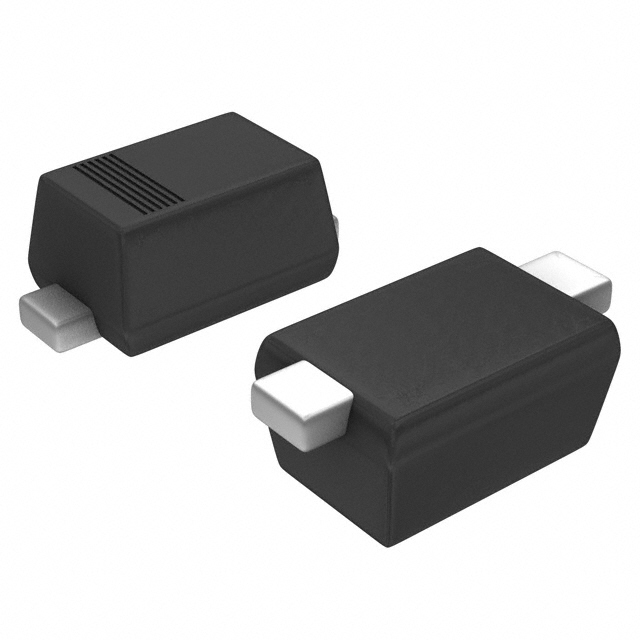

| Part Number | BAP64-05W,115 | BAP64-05W,135 | BAP64-02,115 | BAP64-03,115 |
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RF DIODE PIN 100V 240MW SOT323 | RF DIODE PIN 100V 240MW SOT323-3 | RF DIODE PIN 175V 715MW SOD523 | RF DIODE PIN 175V 500MW SOD323 |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
