Product CatalogPart Number
BAS19-QVL
Manufacturer
Nexperia USA Inc.Description
BAS19-Q/SOT23/TO-236AB
Datasheet
DatasheetPackage
TO-236-3, SC-59, SOT-23-3
In Stock
20,986 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
BAS19-QVL
BAS19-QVL
lmages are for reference only.Payment Methods
Delivery Services
Diode 120 V 200mA Surface Mount TO-236AB
Quick Inquiry
BAS19-QVL
Specifications
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | Nexperia USA Inc. |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 120 V |
| Current - Average Rectified (Io) | 200mA |
| Voltage - Forward (Vf) (Max) @ If | 1.25 V @ 200 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 50 ns |
| Current - Reverse Leakage @ Vr | 100 nA @ 100 V |
| Capacitance @ Vr, F | 5pF @ 0V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | TO-236AB |
| Operating Temperature - Junction | 150°C |
| Base Product Number | - |
| Grade | Automotive |
| Qualification | AEC-Q101 |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | BAS19-7 | BAS19-7-F | BAS19-7-G | BAS19-AU_R1_000A1 |
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Panjit International Inc. |
| RoHS Status | RoHS non-compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DIODE GP 100V 200MA SOT23-3 | DIODE GP 100V 200MA SOT23-3 | DIODE GENERAL PURPOSE SOT23 | SURFACE MOUNT SWITCHING DIODE |
| Series | - | - | * | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
Customers Also Interested in
Recommended Products
BAS19
onsemi
BAS19
Fairchild Semiconductor
BAS19
Taiwan Semiconductor Corporation
BAS19
Diotec Semiconductor

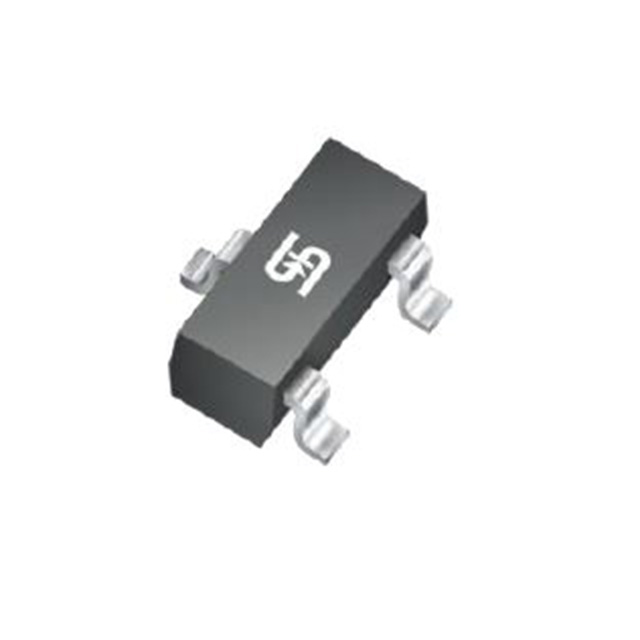

BAS19 RFG
