BAT54-AQ

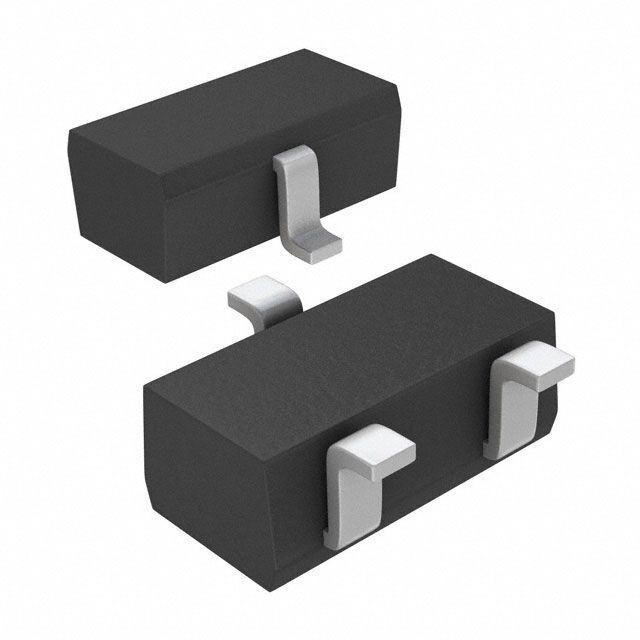

lmages are for reference only.BAT54-AQ
DIODE SCHOTTKY 30V 0.2A SOT23-3
DatasheetTO-236-3, SC-59, SOT-23-3
58,710 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Diode 30 V 200mA Surface Mount SOT-23-3 (TO-236)
BAT54-AQ
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | Diotec Semiconductor |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 30 V |
| Current - Average Rectified (Io) | 200mA |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 100 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 5 ns |
| Current - Reverse Leakage @ Vr | 2 µA @ 25 V |
| Capacitance @ Vr, F | 10pF @ 0V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 (TO-236) |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Base Product Number | - |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
|
|
| Part Number | BAT54-AU_R1_000A1 | BAT54 | BAT54 | BAT54 |
| Manufacturer | Panjit International Inc. | SMC Diode Solutions | Taiwan Semiconductor Corporation | Diotec Semiconductor |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | Not applicable |
| Description | SOT-23, SKY | DIODE SCHOTTKY 30V 200MA SOT523 | SOT-23, 30V, 0.2A, SCHOTTKY DIOD | DIODE SCHOTTKY 30V 0.2A SOT23-3 |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
