Product CatalogPart Number
BAV19W-HE3_A-08
Manufacturer
VishayDescription
SWITCHING DIODE GENPURP SOD123
Datasheet
DatasheetPackage
SOD-123
In Stock
77,765 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
BAV19W-HE3_A-08
BAV19W-HE3_A-08
lmages are for reference only.Payment Methods
Delivery Services
Diode 100 V 300mA Surface Mount SOD-123
Quick Inquiry
BAV19W-HE3_A-08
Specifications
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | Vishay |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Current - Average Rectified (Io) | 300mA |
| Voltage - Forward (Vf) (Max) @ If | 1.25 V @ 200 mA |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 50 ns |
| Current - Reverse Leakage @ Vr | 100 nA @ 100 V |
| Capacitance @ Vr, F | 1.5pF @ 0V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | SOD-123 |
| Supplier Device Package | SOD-123 |
| Operating Temperature - Junction | 150°C |
| Base Product Number | - |
| Grade | Automotive |
| Qualification | AEC-Q101 |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | BAV19W-HE3-08 | BAV19W-HE3-18 | BAV19W-HE3_A-18 | BAV19 |
| Manufacturer | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay | Fairchild Semiconductor |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | DIODE GEN PURP 100V 250MA SOD123 | DIODE GEN PURP 100V 250MA SOD123 | SWITCHING DIODE GENPURP SOD123 | DIODE GEN PURP 120V 200MA DO35 |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) | Bulk |
Customers Also Interested in
Recommended Products
BAV19
Fairchild Semiconductor
BAV19
Diotec Semiconductor
BAV19
onsemi
BAV19
Taiwan Semiconductor Corporation
BAV19 A0G
Taiwan Semiconductor Corporation
BAV19-TAP
Vishay General Semiconductor - Diodes Division
BAV19-TR
Vishay General Semiconductor - Diodes Division
BAV19TR
onsemi
BAV19TR
Fairchild Semiconductor
BAV19W
SMC Diode Solutions
BAV19W
Good-Ark Semiconductor
BAV19W
Taiwan Semiconductor Corporation

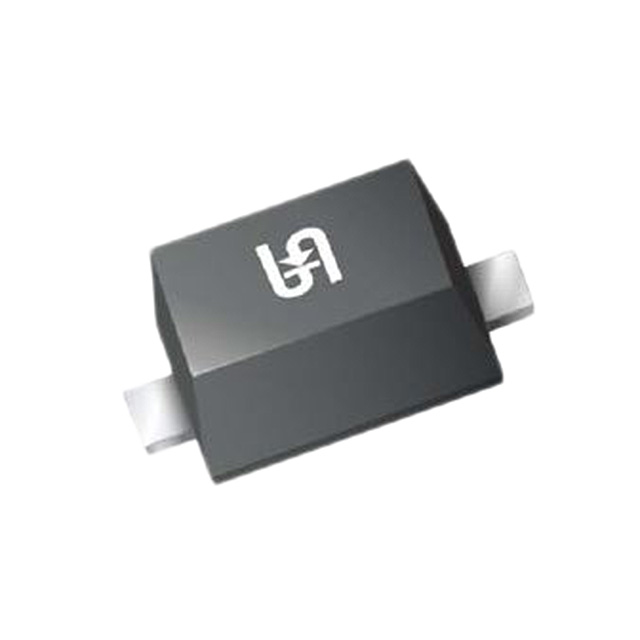

BAV19W RHG
