BAV19WSHE3-TP
lmages are for reference only.BAV19WSHE3-TP
DIODE GEN PURP 100V 200MA SOD323
DatasheetSC-76, SOD-323
63,447 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Diode 100 V 200mA Surface Mount SOD-323
BAV19WSHE3-TP
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | Micro Commercial Co |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Current - Average Rectified (Io) | 200mA |
| Voltage - Forward (Vf) (Max) @ If | 1.25 V @ 200 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 50 ns |
| Current - Reverse Leakage @ Vr | 100 nA @ 100 V |
| Capacitance @ Vr, F | 1.5pF @ 0V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | SC-76, SOD-323 |
| Supplier Device Package | SOD-323 |
| Operating Temperature - Junction | -65°C ~ 150°C |
| Base Product Number | BAV19 |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
|
|
 |

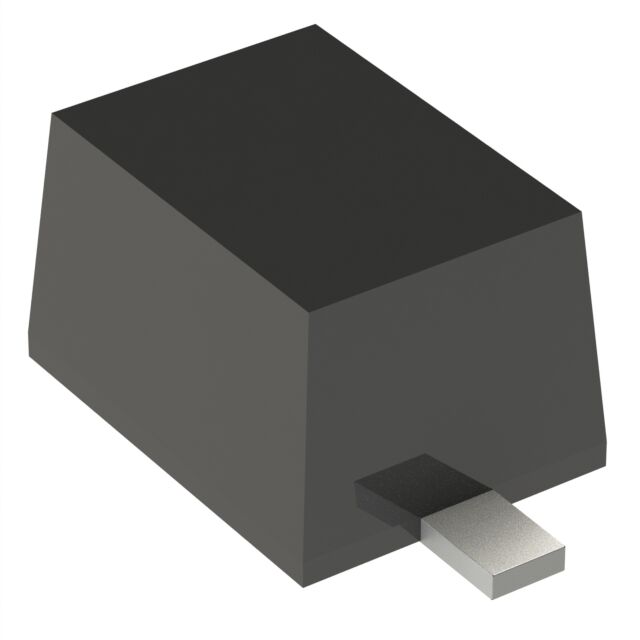

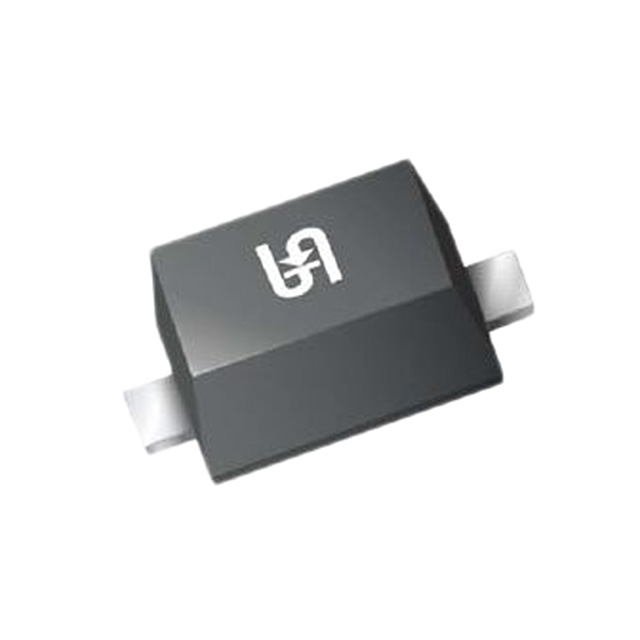

| Part Number | BAV19WS | BAV19WS | BAV19WS | BAV19WS RRG |
| Manufacturer | SMC Diode Solutions | Taiwan Semiconductor Corporation | Diotec Semiconductor | Taiwan Semiconductor Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DIODE GEN PURP 100V 200MA SOD323 | SOD-323F, 120V, 0.2A, SWITCHING | DIODE GEN PURP 100V 0.2A SOD323F | DIODE GP 120V 200MA SOD323F |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
