Product CatalogPart Number
BCM48BF240M300A00
Manufacturer
Vicor CorporationDescription
DC DC CONVERTER 24V 300W
Datasheet
DatasheetPackage
Module
In Stock
15,302 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
BCM48BF240M300A00
BCM48BF240M300A00
lmages are for reference only.Payment Methods
Delivery Services
Bus Converter Module DC DC Converter 1 Output 24V 12A 38V - 55V Input
Quick Inquiry
BCM48BF240M300A00
Specifications
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Vicor Corporation |
| Series | VI Chip® BCM® (300W) |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Type | Bus Converter Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 38V |
| Voltage - Input (Max) | 55V |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 12A |
| Power (Watts) | 300 W |
| Applications | ITE (Commercial) |
| Features | OCP, OTP, SCP, UVLO |
| Operating Temperature | -55°C ~ 125°C |
| Efficiency | 94% |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | Module |
| Size / Dimension | 1.28" L x 0.87" W x 0.26" H (32.5mm x 22.0mm x 6.7mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | BCM48 |
| Voltage - Isolation | 2.25 kV |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
|
| Part Number | BCM48BF030T210A00 | BCM48BF040T200A00 | BCM48BF040T200B00 | BCM48BF040T200B00 |
| Manufacturer | Vicor Corporation | Vicor Corporation | Vicor Corporation | Vicor Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER 3V 210W | DC DC CONVERTER 4V 200W | DC DC CONVERTER 4V 200W | DC DC CONVERTER 4V 200W |
| Series | Vicor Corporation | Vicor Corporation | Vicor Corporation | Vicor Corporation |
| Packaging | Tube | Tube | Tray | Tray |
Customers Also Interested in
Recommended Products
BCM48BF030T210A00
Vicor Corporation

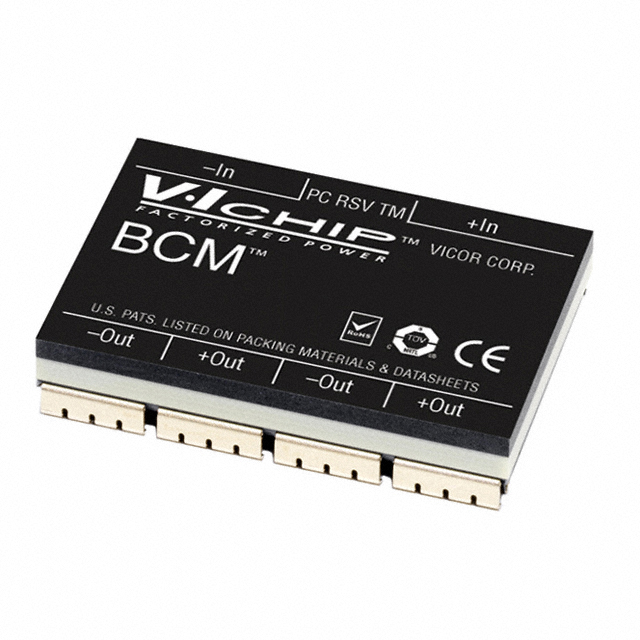

BCM48BF040T200A00
Vicor Corporation
BCM48BF040T200B00
Vicor Corporation
BCM48BF040T200B00
Vicor Corporation
BCM48BF060M240A00
Vicor Corporation
BCM48BF060T240A00
Vicor Corporation
BCM48BF080M240A00
Vicor Corporation
BCM48BF080T240A00
Vicor Corporation
BCM48BF096M240A00
Vicor Corporation

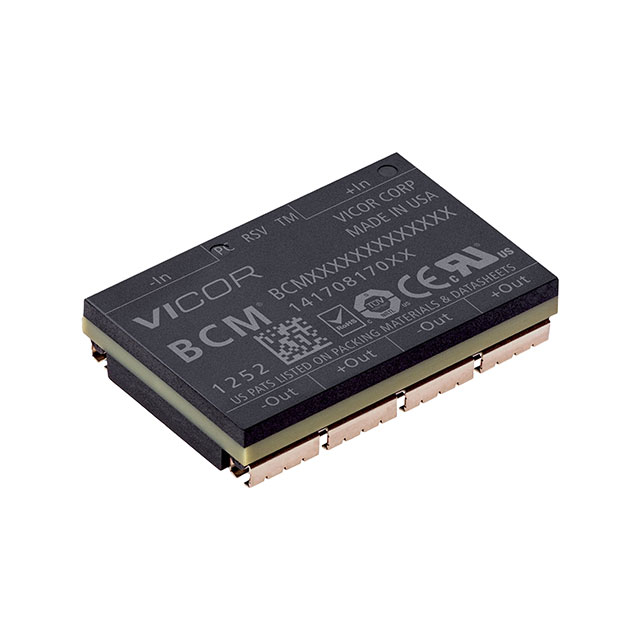

BCM48BF096T240A00
