Product CatalogPart Number
BDSHPA000000S0
Manufacturer
NextGen ComponentsDescription
PC-AMBER Top LED PLCC-6 120 Deg.
Datasheet
DatasheetPackage
6-PLCC
In Stock
80,144 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
BDSHPA000000S0
BDSHPA000000S0
lmages are for reference only.Payment Methods
Delivery Services
Amber 587nm LED Indication - Discrete 2.8V 6-PLCC
Quick Inquiry
BDSHPA000000S0
Specifications
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | NextGen Components |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS Compliant |
| Color | Amber |
| Configuration | Standard |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | - |
| Lens Style | Round with Flat Top |
| Lens Size | 2.60mm Dia |
| Voltage - Forward (Vf) (Typ) | 2.8V |
| Current - Test | 140mA |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 587nm |
| Wavelength - Peak | 592nm |
| Features | - |
| Package / Case | 6-PLCC |
| Supplier Device Package | 6-PLCC |
| Size / Dimension | 3.40mm L x 3.30mm W |
| Height (Max) | 1.90mm |
| Base Product Number | - |
| Grade | Automotive |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

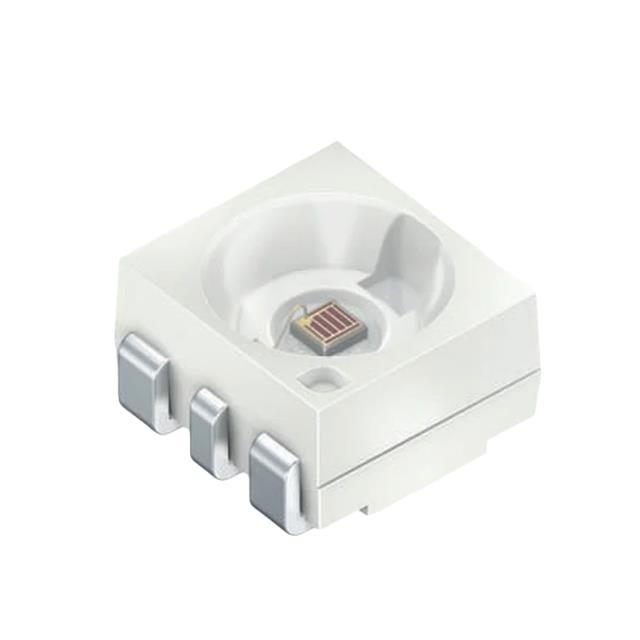

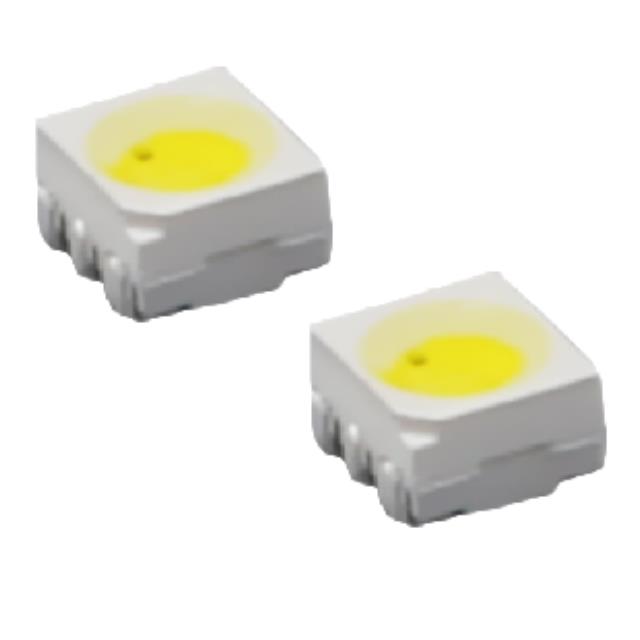

| Part Number | BDSHA000000S00 | BDSHB0000000S0 | BDSHCW0000000S | BDSHR000000S00 |
| Manufacturer | NextGen Components | NextGen Components | NextGen Components | NextGen Components |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | AMBER Top LED PLCC-6 120 Deg. | BLUE Top LED PLCC-6 120 Deg. | Cool White Top LED PLCC-6 120 De | Red Top LED PLCC-6 120 deg. |
| Series | NextGen Components | NextGen Components | NextGen Components | NextGen Components |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
