BFC233914564

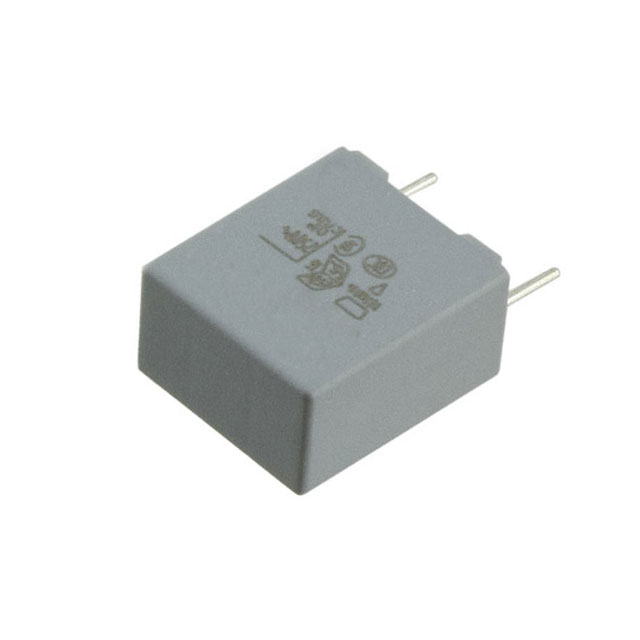

lmages are for reference only.BFC233914564
CAP FILM 0.56UF 10% 630VDC RAD
DatasheetRadial
80,772 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
0.56 µF Film Capacitor 310V 630V Polypropylene (PP), Metallized Radial
BFC233914564
| Category | Capacitors - Film Capacitors - |
| Manufacturer | Vishay Beyschlag/Draloric/BC Components |
| Series | MKP339 |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 0.56 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 310V |
| Voltage Rating - DC | 630V |
| Dielectric Material | Polypropylene (PP), Metallized |
| Operating Temperature | -55°C ~ 110°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.024" L x 0.335" W (26.00mm x 8.50mm) |
| Height - Seated (Max) | 0.709" (18.00mm) |
| Termination | PC Pins |
| Lead Spacing | 0.886" (22.50mm) |
| Applications | Automotive; EMI, RFI Suppression |
| Ratings | AEC-Q200, X2 |
| Features | - |
| ESR (Equivalent Series Resistance) | - |
| Base Product Number | - |
| Product Attribute |  |
 |
|
 |
| Part Number | BFC233914562 | BFC233914563 | BFC233914564 | BFC233914102 |
| Manufacturer | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP FILM 5600PF 10% 630VDC RAD | CAP FILM 0.056UF 10% 630VDC RAD | CAP FILM 0.56UF 10% 630VDC RAD | CAP FILM 1000PF 10% 630VDC RAD |
| Series | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components |
| Packaging | Bulk | Bulk | Bulk | Bulk |
