BK-ADC-30-R

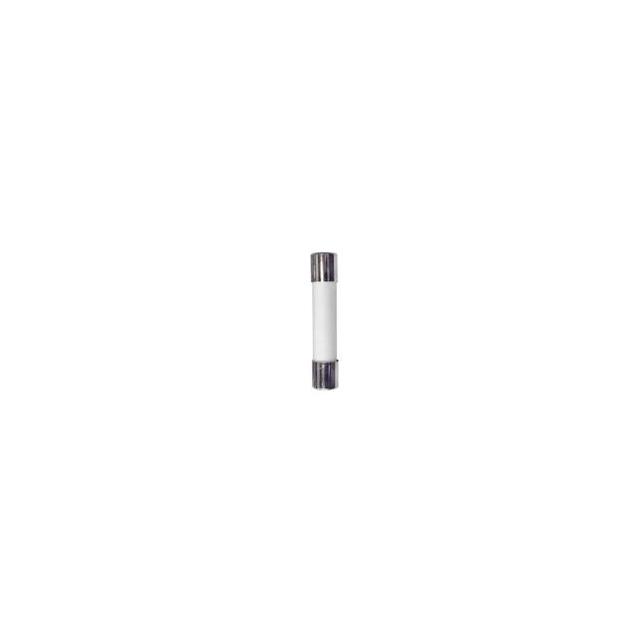

lmages are for reference only.BK-ADC-30-R
FUSE CERM 30A 500VAC 500VDC 3AB
Datasheet3AB, 3AG, 1/4" x 1-1/4"
39,810 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
30 A 500 V AC 500 V DC Fuse Cartridge, Ceramic Requires Holder 3AB, 3AG, 1/4" x 1-1/4"
BK-ADC-30-R
| Category | Circuit Protection - Fuses - |
| Manufacturer | Eaton - Electronics Division |
| Series | ADC |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Requires Holder |
| Fuse Type | Cartridge, Ceramic |
| Current Rating (Amps) | 30 A |
| Voltage Rating - AC | 500 V |
| Voltage Rating - DC | 500 V |
| Response Time | Fast Blow |
| Package / Case | 3AB, 3AG, 1/4" x 1-1/4" |
| Breaking Capacity @ Rated Voltage | 30kA AC, 20kA DC |
| Melting I²t | 270.0 |
| Approval Agency | cURus, UL |
| Operating Temperature | -50°C ~ 125°C |
| Color | - |
| Size / Dimension | 0.252" Dia x 1.252" L (6.40mm x 31.80mm) |
| Base Product Number | - |
| DC Cold Resistance | 0.0037 Ohms |
| Product Attribute |  |
 |
 |
 |
| Part Number | BK-ADC-12-R | BK-ADC-15-R | BK-ADC-20-R | BK-ADC-25-R |
| Manufacturer | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | FUSE CERM 12A 500VAC 500VDC 3AB | FUSE CERM 15A 500VAC 500VDC 3AB | FUSE CERM 20A 500VAC 500VDC 3AB | FUSE CERM 25A 500VAC 500VDC 3AB |
| Series | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| Packaging | Bulk | Bulk | Bulk | Bulk |
