BK-S505SC-1.25-R
lmages are for reference only.BK-S505SC-1.25-R
FUSE CERAMIC 1.25A 250VAC 5X20MM
Datasheet5mm x 20mm (Axial)
62,592 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1.25 A 250 V AC DC Fuse Cartridge, Ceramic Through Hole 5mm x 20mm (Axial)
BK-S505SC-1.25-R
| Category | Circuit Protection - Fuses - |
| Manufacturer | Eaton - Electronics Division |
| Series | S505 |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Mounting Type | Through Hole |
| Fuse Type | Cartridge, Ceramic |
| Current Rating (Amps) | 1.25 A |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | - |
| Response Time | Slow Blow |
| Package / Case | 5mm x 20mm (Axial) |
| Breaking Capacity @ Rated Voltage | 1.5kA |
| Melting I²t | 2.22 |
| Approval Agency | BSI, CCC/CQC, CSA, cURus, IMQ, KC, PSE/JET, SEMKO, VDE |
| Operating Temperature | - |
| Color | - |
| Size / Dimension | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) |
| Base Product Number | - |
| DC Cold Resistance | 0.1075 Ohms |
| Product Attribute |  |
 |
 |
 |

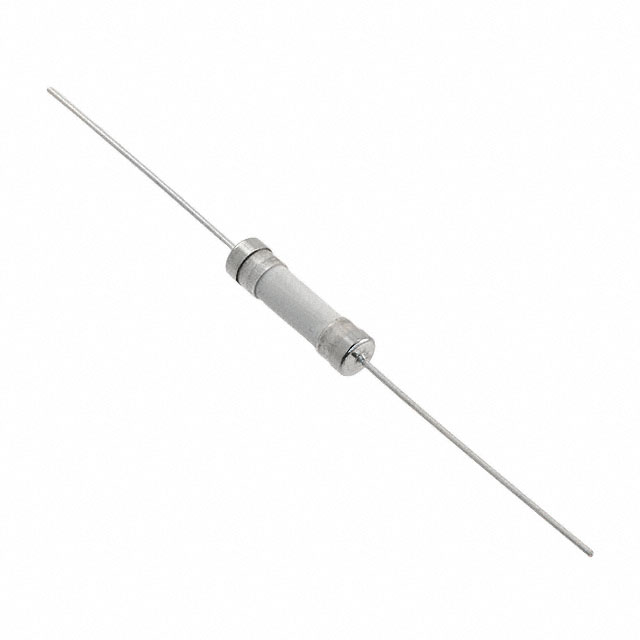

| Part Number | BK-S505SC-1-R | BK-S505SC-1.6-R | BK-S505SC-10-R | BK-S505SC-2-R |
| Manufacturer | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | FUSE CERAMIC 1A 250VAC 5X20MM | FUSE CERAMIC 1.6A 250VAC 5X20MM | FUSE CERAMIC 10A 250VAC 5X20MM | FUSE CERAMIC 2A 250VAC 5X20MM |
| Series | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| Packaging | Bulk | Bulk | Bulk | Bulk |
