BK/AGC-20

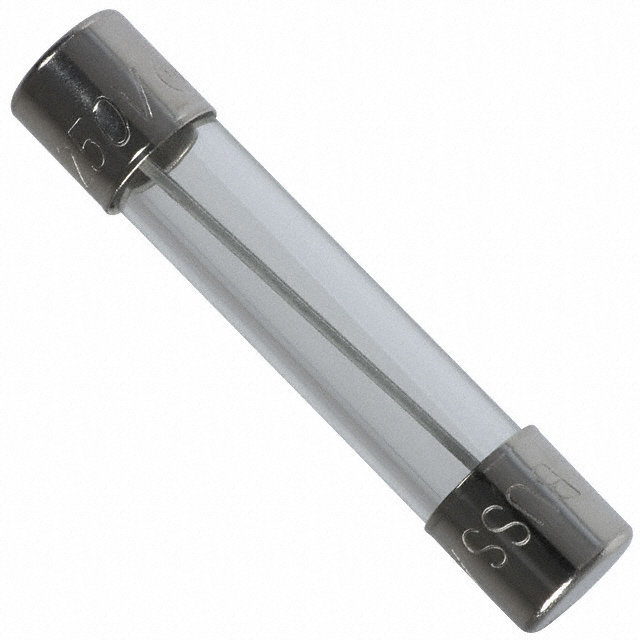

lmages are for reference only.BK/AGC-20
FUSE GLASS 20A 32VAC 3AB 3AG
Datasheet3AB, 3AG, 1/4" x 1-1/4"
94,120 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
20 A 32 V AC DC Fuse Cartridge, Glass Requires Holder 3AB, 3AG, 1/4" x 1-1/4"
BK/AGC-20
| Category | Circuit Protection - Fuses - |
| Manufacturer | Eaton - Electronics Division |
| Series | AGC |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Mounting Type | Requires Holder |
| Fuse Type | Cartridge, Glass |
| Current Rating (Amps) | 20 A |
| Voltage Rating - AC | 32 V |
| Voltage Rating - DC | - |
| Response Time | Fast Blow |
| Package / Case | 3AB, 3AG, 1/4" x 1-1/4" |
| Breaking Capacity @ Rated Voltage | 1kA |
| Melting I²t | 2440.0 |
| Approval Agency | CSA, UL |
| Operating Temperature | -55°C ~ 125°C |
| Color | - |
| Size / Dimension | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) |
| Base Product Number | AGC |
| DC Cold Resistance | 0.0034 Ohms |
| Product Attribute |  |
 |
 |
 |
| Part Number | BK/AGC-2 | BK/AGC-2-1/2 | BK/AGC-2-1/2TX | BK/AGC-2-1/4-R |
| Manufacturer | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant | RoHS Compliant |
| Description | FUSE GLASS 2A 250VAC 3AB 3AG | FUSE GLASS 2.5A 250VAC 3AB 3AG | BUSS SMALL DIMENSION FUSE | FUSE GLASS 2.25A 250VAC 3AB 3AG |
| Series | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| Packaging | Bulk | Bulk | Bulk | Bulk |
