BK/TDC180-5
lmages are for reference only.BK/TDC180-5
FUSE CARTRIDGE 5A 240VAC 8AG
Datasheet8AG, 1/4" x 1"
80,780 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
5A 240 VAC Fuse Cartridge Requires Holder
BK/TDC180-5
| Category | Circuit Protection - Electrical-Specialty Fuses - |
| Manufacturer | Eaton - Electronics Division |
| Series | TDC180 |
| Packaging | Bulk |
| RoHS Status | |
| Mounting Type | Requires Holder |
| Fuse Type | Cartridge |
| Current Rating (Amps) | 5A |
| Voltage Rating - AC | 240 VAC |
| Response Time | Fast Blow |
| Applications | Electrical, Industrial |
| Features | - |
| Class | - |
| Approval Agency | ASTA, CCC |
| Operating Temperature | - |
| Breaking Capacity @ Rated Voltage | 6kA |
| Package / Case | 8AG, 1/4" x 1" |
| Size / Dimension | 0.248" Dia x 1.000" L (6.30mm x 25.40mm) |
| Base Product Number | - |
| Voltage Rating - DC | - |
| Grade | - |
| Qualification | - |
| Melting I²t | - |
| DC Cold Resistance | - |
| Product Attribute |  |
 |
 |
 |

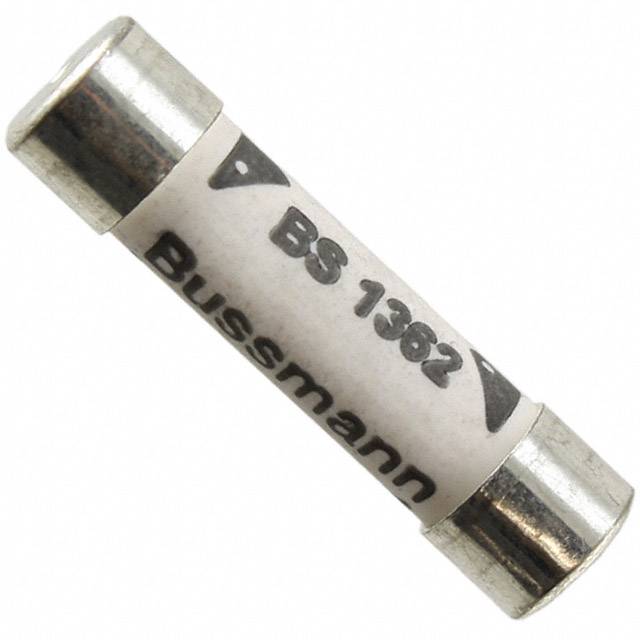

| Part Number | BK/TDC180-1 | BK/TDC180-10 | BK/TDC180-13 | BK/TDC180-1A |
| Manufacturer | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| RoHS Status | RoHS Compliant | |||

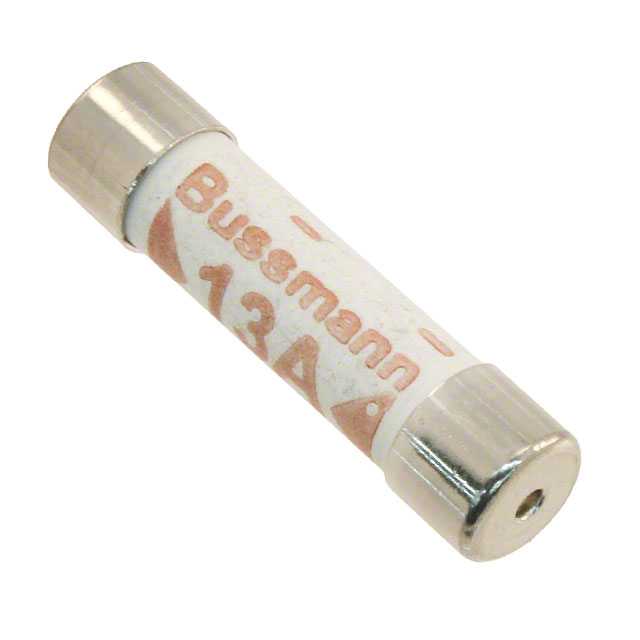

| Description | FUSE CARTRIDGE 1A 240VAC 8AG | FUSE CARTRIDGE 10A 240VAC 8AG | FUSE CARTRIDGE 13A 240VAC 8AG | FUSE CARTRIDGE 1A 240VAC 8AG |
| Series | TDC180 | TDC180 | TDC180 | TDC180 |
| Packaging | Bulk | Bulk | Bulk | Bulk |
