BL-HJX32X
lmages are for reference only.BL-HJX32X
LED RED CLEAR SMD
Datasheet2-PLCC
44,569 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Red 625nm LED Indication - Discrete 2V 2-PLCC
BL-HJX32X
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | American Bright Optoelectronics Corporation |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Color | Red |
| Configuration | - |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 900mcd |
| Lens Style | Round with Flat Top |
| Lens Size | 1.70mm Dia |
| Voltage - Forward (Vf) (Typ) | 2V |
| Current - Test | 20mA |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 625nm |
| Wavelength - Peak | 625nm |
| Features | - |
| Package / Case | 2-PLCC |
| Supplier Device Package | - |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Height (Max) | 2.05mm |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

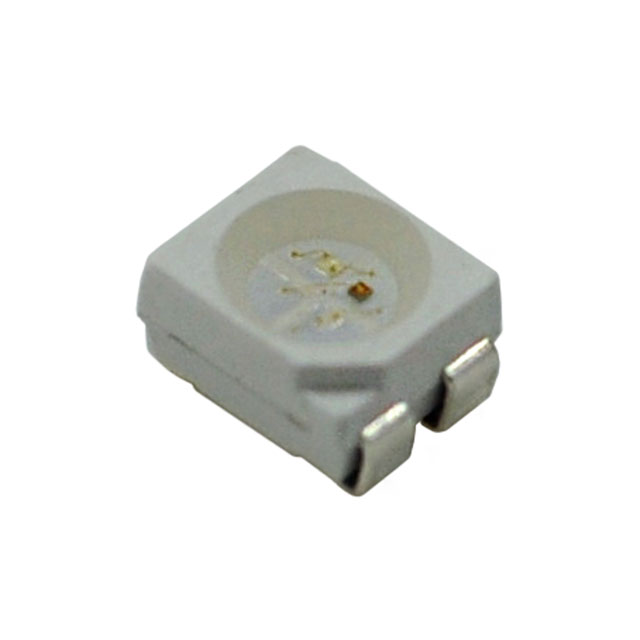

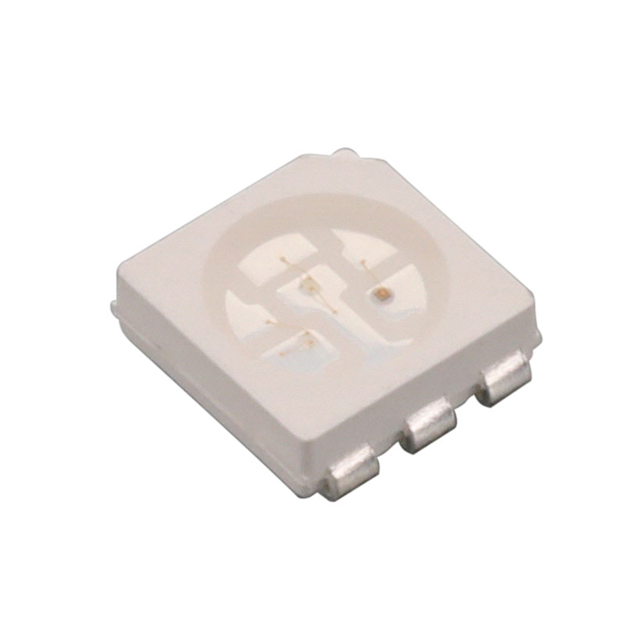

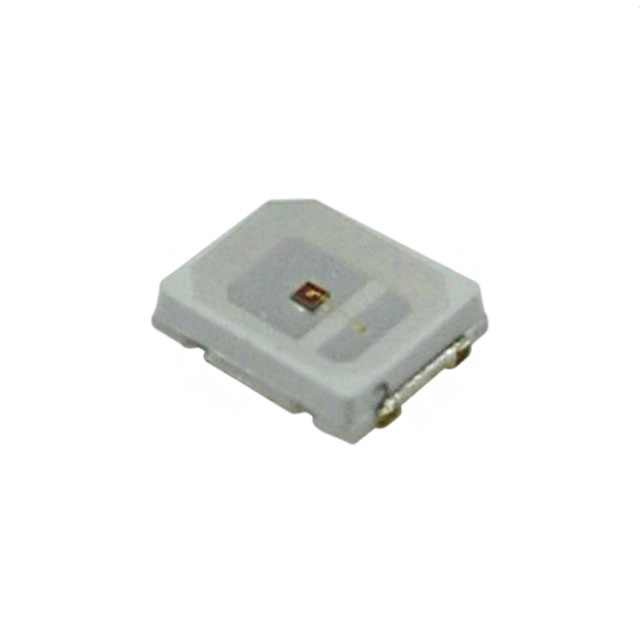

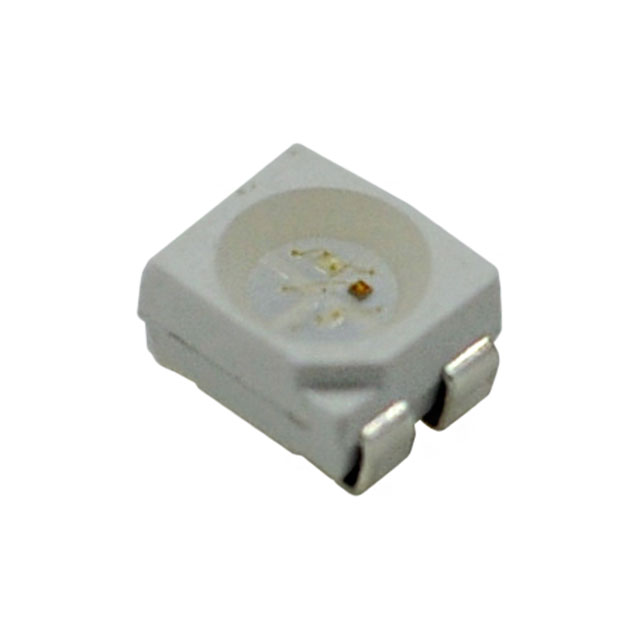

| Part Number | BL-HJX32A | BL-HJXGXBX32L | BL-HJXGXBX32M-A | BL-HJXGXBX32M-D |
| Manufacturer | American Bright Optoelectronics Corporation | American Bright Optoelectronics Corporation | American Bright Optoelectronics Corporation | American Bright Optoelectronics Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED RED CLEAR 2835 SMD | LED RGB CLEAR 5050 SMD | LED RGB CLEAR 3528 SMD | LED RGB CLEAR 3528 SMD |
| Series | American Bright Optoelectronics Corporation | American Bright Optoelectronics Corporation | American Bright Optoelectronics Corporation | American Bright Optoelectronics Corporation |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
