BLCR-L10D-D4

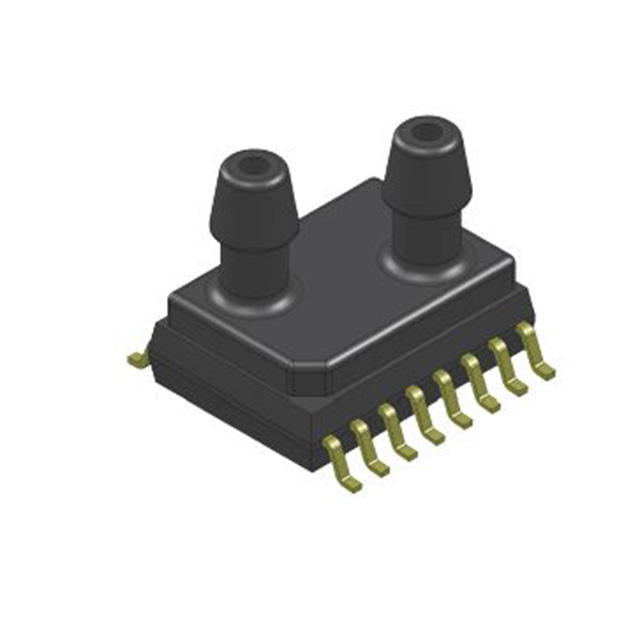

lmages are for reference only.BLCR-L10D-D4
SENSOR 0.36PSID 0.12" .032V
Datasheet16-SOIC Module, Dual Top Ports
64,090 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Pressure Sensor ±0.36PSI (±2.5kPa) Differential Male - 0.12" (3mm) Tube, Dual 0 mV ~ 32 mV 16-SOIC Module, Dual Top Ports
BLCR-L10D-D4
| Category | Sensors, Transducers - Pressure Sensors-Transducers - |
| Manufacturer | Amphenol All Sensors Corporation |
| Series | BLCR |
| Packaging | Tube |
| RoHS Status | RoHS Compliant |
| Base Product Number | BLCR-L10D |
| Applications | Board Mount |
| Pressure Type | Differential |
| Operating Pressure | ±0.36PSI (±2.5kPa) |
| Output Type | Analog Voltage |
| Output | 0 mV ~ 32 mV |
| Accuracy | ±0.5% |
| Voltage - Supply | 1.8V ~ 3.3V |
| Port Size | Male - 0.12" (3mm) Tube, Dual |
| Port Style | Barbed |
| Features | - |
| Termination Style | Gull Wing |
| Maximum Pressure | 7.25PSI (50kPa) |
| Operating Temperature | -25°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC Module, Dual Top Ports |
| Supplier Device Package | - |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
 |
 |

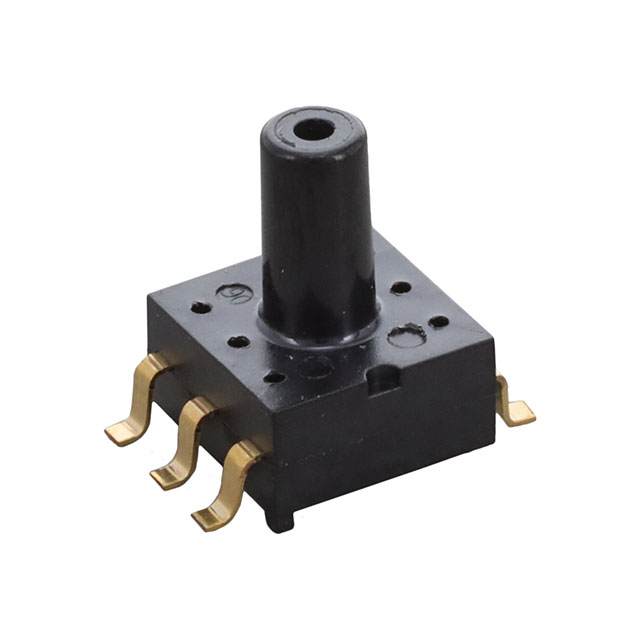

| Part Number | BLCR-L10D-D4 | BLCR-L10D-U2 | BLCR-L01D-D4 | BLCR-L01D-U2 |
| Manufacturer | Amphenol All Sensors Corporation | Amphenol All Sensors Corporation | Amphenol All Sensors Corporation | Amphenol All Sensors Corporation |
| RoHS Status | RoHS Compliant | RoHS Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SENSOR 0.36PSID 0.12" .032V | SENSOR 0.36PSIG 0.12" .032V | SENSOR 0.04PSID 0.12" .008V | SENSOR 0.04PSIG 0.12" .008V |
| Series | BLCR | BLCR | BLCR | BLCR |
| Packaging | Tube | Tube | Tube | Tube |
