BLUENRG-345AT

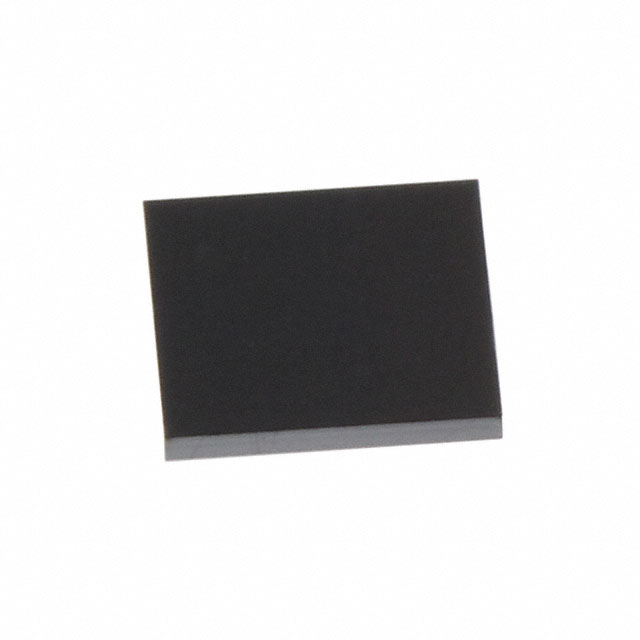

lmages are for reference only.BLUENRG-345AT
IC RF TXRX+MCU BLE 32QFN
Datasheet32-VFQFN Exposed Pad
47,672 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
IC RF TxRx + MCU Bluetooth Bluetooth v5.2 2.4GHz ~ 2.4835GHz 32-VFQFN Exposed Pad
BLUENRG-345AT
| Category | RF and Wireless - RF Transceiver ICs - |
| Manufacturer | STMicroelectronics |
| Series | BlueNRG |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | TxRx + MCU |
| RF Family/Standard | Bluetooth |
| Protocol | Bluetooth v5.2 |
| Modulation | GFSK |
| Frequency | 2.4GHz ~ 2.4835GHz |
| Data Rate (Max) | 2Mbps |
| Power - Output | 8dBm |
| Sensitivity | -97dBm |
| Memory Size | 256kB Flash, 32kB RAM |
| Serial Interfaces | ADC, GPIO, I2C, I2S, PDM, SPI, USART |
| GPIO | 32 |
| Voltage - Supply | 1.7V ~ 3.6V |
| Current - Receiving | 3.4mA |
| Current - Transmitting | 4.3mA |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 32-VFQFN Exposed Pad |
| Supplier Device Package | 32-QFN (5x5) |
| Base Product Number | BLUENRG |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | BLUENRG-345AC | BLUENRG-345MC | BLUENRG-345MT | BLUENRG-345VC |
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC RF TXRX+MCU BLE 32QFN | IC RF TXRX+MCU BLE 48QFN | IC RF TXRX+MCU BLE 48QFN | IC RF TXRX+MCU BLE 49WLCSP |
| Series | BlueNRG | BlueNRG | BlueNRG | BlueNRG |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
