BSI24-3.3/5S3R0F

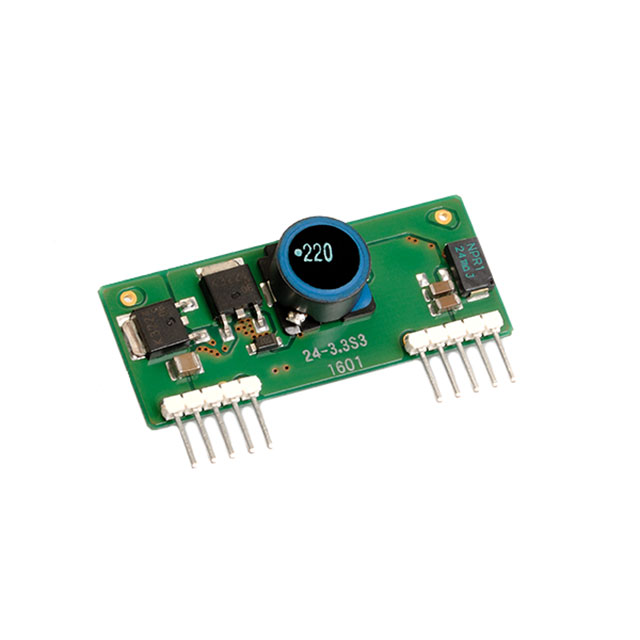

lmages are for reference only.BSI24-3.3/5S3R0F
DC DC CONVERTER 3.3V
Datasheet36-DIP Module, 12 Leads
90,147 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Non-Isolated PoL Module DC DC Converter 1 Output 3.3V 3A 8V - 27V Input
BSI24-3.3/5S3R0F
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Bellnix Co., Ltd. |
| Series | BSI-24 |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 8V |
| Voltage - Input (Max) | 27V |
| Voltage - Output 1 | 3.3V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 3A |
| Power (Watts) | - |
| Applications | ITE (Commercial) |
| Features | Adjustable Output, Remote On/Off |
| Operating Temperature | -10°C ~ 70°C (With Derating) |
| Efficiency | 91% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 36-DIP Module, 12 Leads |
| Size / Dimension | 1.97" L x 0.81" W x 0.56" H (50.0mm x 20.5mm x 14.2mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | BSI24 |
| Voltage - Isolation | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | BSI24-3.3/5S3R0 | BP5277-12 | B0315XT-1WR3 | B048T240M30 |
| Manufacturer | Bellnix Co., Ltd. | Rohm Semiconductor | Mornsun America, LLC | Vicor Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | DC DC CONVERTER 3.3V | DC DC CONVERTER 12V 6W | DC DC CONVERTER 15V 1W | DC DC CONVERTER 24V 300W |
| Series | Bellnix Co., Ltd. | Rohm Semiconductor | Vicor Corporation | |
| Packaging | Bulk | Tray | B0315XT-1WR3 (1W) | Tray |
