BSPQ000603042N6B00

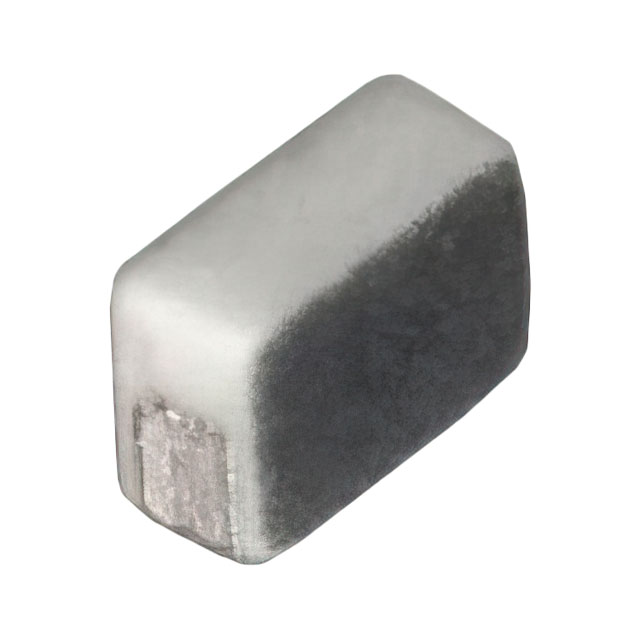

lmages are for reference only.BSPQ000603042N6B00
FIXED IND CHIP CERM 2.6NH 600MA
Datasheet0201 (0603 Metric)
47,583 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
2.6 nH Unshielded Thick Film Inductor 600 mA 120mOhm Max 0201 (0603 Metric)
BSPQ000603042N6B00
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Pulse Electronics |
| Series | BSPQ |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Thick Film |
| Material - Core | Ceramic |
| Inductance | 2.6 nH |
| Tolerance | ±0.1nH |
| Current Rating (Amps) | 600 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 120mOhm Max |
| Q @ Freq | 20 @ 500MHz |
| Frequency - Self Resonant | 9GHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 500 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0201 (0603 Metric) |
| Supplier Device Package | 0201 |
| Size / Dimension | 0.024" L x 0.012" W (0.60mm x 0.30mm) |
| Height - Seated (Max) | 0.017" (0.43mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
|
 |
| Part Number | BSPQ000603042N6C00 | BSPQ000603040N5B00 | BSPQ000603040N5C00 | BSPQ000603040N6B00 |
| Manufacturer | Pulse Electronics | Pulse Electronics | Pulse Electronics | Pulse Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 2.6NH SMD | 060304 HIGH Q INDUCTORS 0.5NH 0. | 060304 HIGH Q INDUCTORS 0.5NH 0. | FIXED IND 0.6NH 1.1A 40MOHM SMD |
| Series | Pulse Electronics | Pulse Electronics | Pulse Electronics | Pulse Electronics |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
