BSZ0506NSATMA1

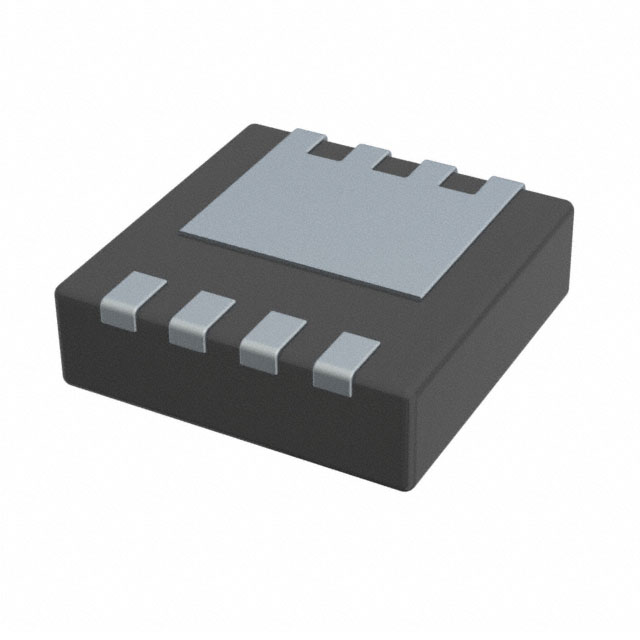

lmages are for reference only.BSZ0506NSATMA1
MOSFET N-CH 30V 15A/40A TSDSON
Datasheet8-PowerTDFN
78,701 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 30 V 15A (Ta), 40A (Tc) 2.1W (Ta), 27W (Tc) Surface Mount PG-TSDSON-8-FL
BSZ0506NSATMA1
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Infineon Technologies |
| Series | OptiMOS™ |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 15A (Ta), 40A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 4.4mOhm @ 20A, 10V |
| Vgs(th) (Max) @ Id | 2V @ 250µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 950 pF @ 15 V |
| FET Feature | - |
| Power Dissipation (Max) | 2.1W (Ta), 27W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PG-TSDSON-8-FL |
| Package / Case | 8-PowerTDFN |
| Base Product Number | BSZ0506 |
| Gate Charge (Qg) (Max) @ Vgs | 15 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

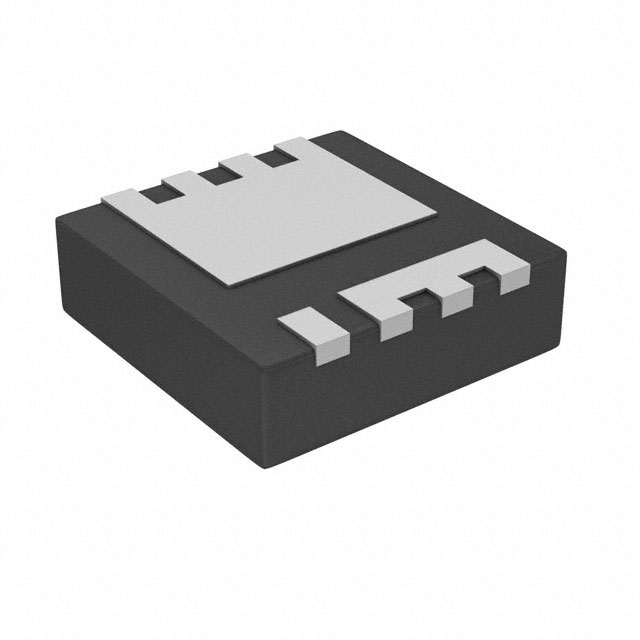

| Part Number | BSZ009NE2LS5ATMA1 | BSZ010NE2LS5ATMA1 | BSZ011NE2LS5IATMA1 | BSZ013NE2LS5IATMA1 |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET N-CH 25V 39A/40A TSDSON | MOSFET N-CH 25V 32A/40A TSDSON | MOSFET N-CH 25V 35A/40A TSDSON | MOSFET N-CH 25V 32A/40A TSDSON |
| Series | OptiMOS™ 5 | OptiMOS™ 5 | OptiMOS™ 5 | OptiMOS™ |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
