BT152B-800R,118
lmages are for reference only.BT152B-800R,118
SCR 800V 20A D2PAK
DatasheetTO-263-3, D2PAK (2 Leads + Tab), TO-263AB
40,577 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
SCR 800 V 20 A Standard Recovery Surface Mount D2PAK
BT152B-800R,118
| Category | Discrete Semiconductor Products - Thyristors - SCRs |
| Manufacturer | WeEn Semiconductors |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> |
| RoHS Status | RoHS Compliant |
| Voltage - Off State | 800 V |
| Voltage - Gate Trigger (Vgt) (Max) | 1.5 V |
| Current - Gate Trigger (Igt) (Max) | 32 mA |
| Current - On State (It (AV)) (Max) | 13 A |
| Current - Hold (Ih) (Max) | 60 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 200A, 220A |
| SCR Type | Standard Recovery |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Supplier Device Package | D2PAK |
| Voltage - On State (Vtm) (Max) | 1.75 V |
| Current - On State (It (RMS)) (Max) | 20 A |
| Current - Off State (Max) | 1 mA |
| Base Product Number | BT152 |
| Product Attribute |  |
 |
 |
 |

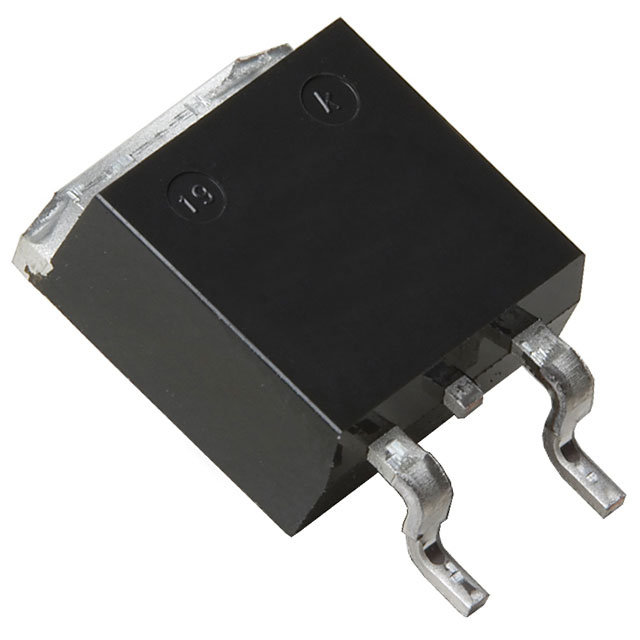

| Part Number | BT152-1200TQ | BT152-400R,127 | BT152B-400R,118 | BT152B-600R,118 |
| Manufacturer | WeEn Semiconductors | WeEn Semiconductors | WeEn Semiconductors | WeEn Semiconductors |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant | RoHS Compliant |
| Description | SCR 1.2KV 31A TO220AB | SCR 450V 20A TO220AB | SCR 450V 20A D2PAK | SCR 650V 20A D2PAK |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> |
