BTA330Y-800BTQ

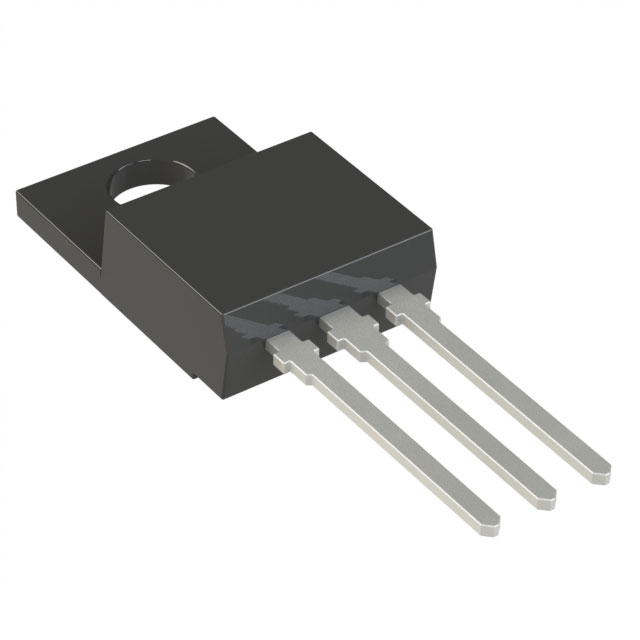

lmages are for reference only.BTA330Y-800BTQ
TRIAC 800V 30A TO220AB
DatasheetTO-220-3 Isolated Tab
53,103 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
TRIAC Standard 800 V 30 A Through Hole TO-220AB
BTA330Y-800BTQ
| Category | Discrete Semiconductor Products - Thyristors - TRIACs |
| Manufacturer | WeEn Semiconductors |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Triac Type | Standard |
| Voltage - Off State | 800 V |
| Current - On State (It (RMS)) (Max) | 30 A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.3 V |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 270A, 297A |
| Current - Gate Trigger (Igt) (Max) | 50 mA |
| Current - Hold (Ih) (Max) | 75 mA |
| Configuration | Single |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-220-3 Isolated Tab |
| Supplier Device Package | TO-220AB |
| Base Product Number | BTA330 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | BTA330Y-800CTQ | BTA30-600CW3G | BTA30-800CW3G | BTA308-800ETQ |
| Manufacturer | WeEn Semiconductors | Littelfuse Inc. | Littelfuse Inc. | WeEn Semiconductors |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant |
| Description | TRIAC 800V 30A TO220AB | TRIAC 600V 30A TO220AB | TRIAC 800V 30A TO220AB | TRIAC SENS GATE 800V 8A TO220AB |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tube | Tube |
