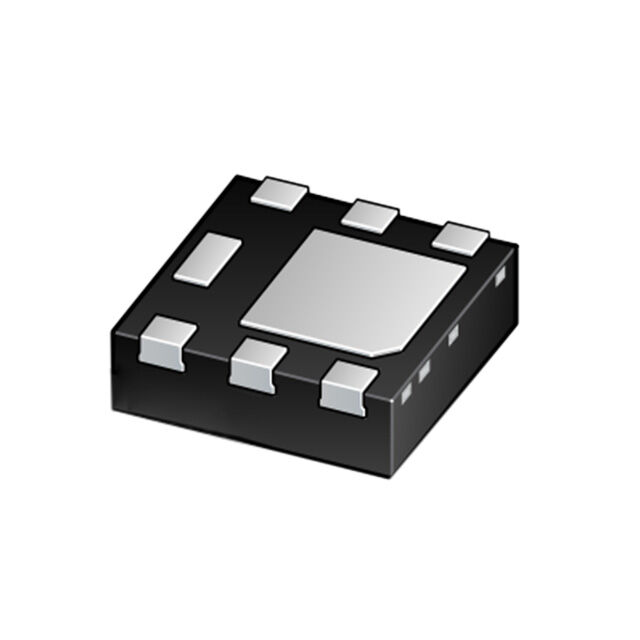

lmages are for reference only.BUK6D120-60PZ
BUK6D120-60P/SOT1220/SOT1220
Datasheet6-UDFN Exposed Pad
84,159 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
P-Channel 60 V 3A (Ta), 8A (Tc) 2.3W (Ta), 15W (Tc) Surface Mount DFN2020MD-6
BUK6D120-60PZ
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Nexperia USA Inc. |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 3A (Ta), 8A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 120mOhm @ 3A, 10V |
| Vgs(th) (Max) @ Id | 3.2V @ 250µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 724 pF @ 30 V |
| FET Feature | - |
| Power Dissipation (Max) | 2.3W (Ta), 15W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | DFN2020MD-6 |
| Package / Case | 6-UDFN Exposed Pad |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | 18 nC @ 10 V |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
|
|
| Part Number | BUK6D120-40EX | BUK6D120-60PX | BUK6D125-60EX | BUK3F00-50WFEA,518 |
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET N-CH 40V 2.9A/5.7A 6DFN | MOSFET P-CH 60V 3A/8A 6DFN | MOSFET N-CH 60V 2.7A/7.4A 6DFN | 9608 AUTO MULTI TECHNOLOGY AND I |
| Series | - | TrenchMOS™ | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
