CMC 500MA 2LN 25 OHM SMD
DatasheetHorizontal, 4 PC Pad
12,052 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services

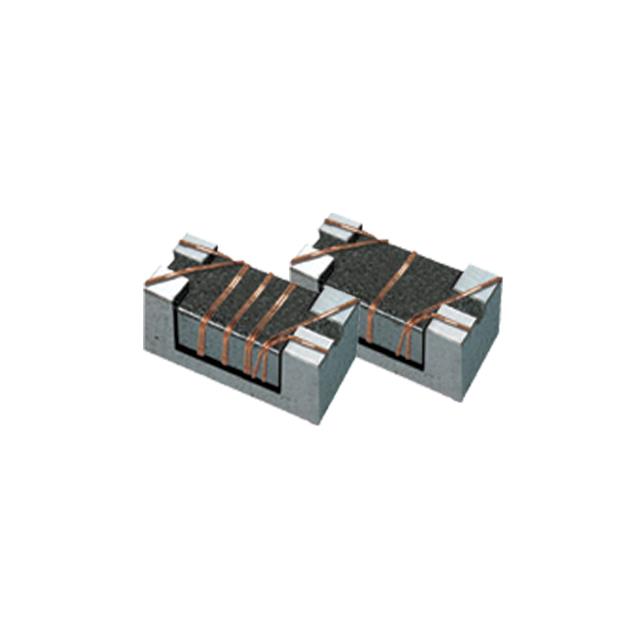

2 Line Common Mode Choke Surface Mount 25 Ohms @ 100 MHz 500mA DCR 77mOhm
BWCU00160811250M02
| Category | Filters - Common Mode Chokes - |
| Manufacturer | Pulse Electronics |
| Series | BWCU_02 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Filter Type | Signal Line |
| Number of Lines | 2 |
| Inductance @ Frequency | - |
| Current Rating (Max) | 500mA |
| DC Resistance (DCR) (Max) | 77mOhm |
| Voltage Rating - DC | 50V |
| Voltage Rating - AC | - |
| Operating Temperature | -40°C ~ 105°C |
| Ratings | - |
| Approval Agency | - |
| Features | - |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height (Max) | 0.051" (1.30mm) |
| Package / Case | Horizontal, 4 PC Pad |
| Base Product Number | - |
| Impedance @ Frequency | 25 Ohms @ 100 MHz |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | BWCU00160811121M02 | BWCU00160811141M02 | BWCU00160811221M02 | BWCU00160811600M02 |
| Manufacturer | Pulse Electronics | Pulse Electronics | Pulse Electronics | Pulse Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CMC 500MA 2LN 120 OHM SMD | CMC 500MA 2LN 140 OHM SMD | CMC 500MA 2LN 220 OHM SMD | CMC 500MA 2LN 60 OHM SMD |
| Series | BWCU_02 | BWCU_02 | BWCU_02 | BWCU_02 |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
