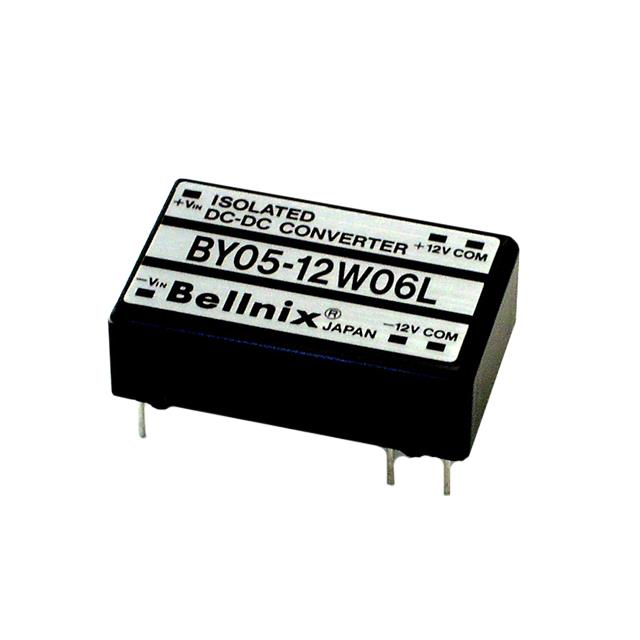

BY05-12W06L
lmages are for reference only.BY05-12W06L
DC DC CONVERTER +/-12V 16W
Datasheet24-DIP Module, 6 Leads
48,877 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 2 Output 12V -12V 65mA, 65mA 4.75V - 6V Input
BY05-12W06L
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Bellnix Co., Ltd. |
| Series | BY-L (1.5W) |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 4.75V |
| Voltage - Input (Max) | 6V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | -12V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 65mA, 65mA |
| Power (Watts) | 16 W |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -25°C ~ 71°C (With Derating) |
| Efficiency | 60% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 24-DIP Module, 6 Leads |
| Size / Dimension | 1.28" L x 0.80" W x 0.41" H (32.6mm x 20.4mm x 10.3mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | BY05-12 |
| Voltage - Isolation | 500 V |
| Product Attribute |  |
 |
 |
|

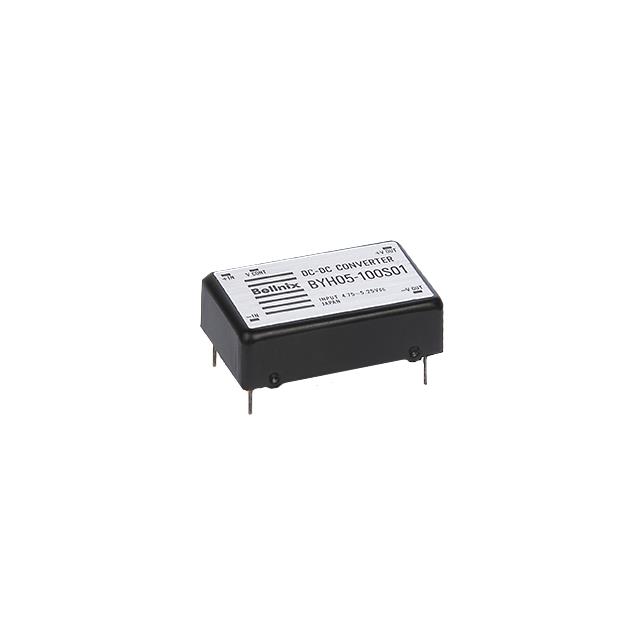

| Part Number | BY05-12W06H | BY05-05S20H | BY05-05S30L | BY05-05S30L |
| Manufacturer | Bellnix Co., Ltd. | Bellnix Co., Ltd. | Bellnix Co., Ltd. | Bellnix Co., Ltd. |
| RoHS Status | RoHS Compliant | ROHS3 Compliant | RoHS Compliant | RoHS Compliant |
| Description | DC DC CONVERTER +/-12V 16W | DC DC CONVERTER 5V 1W | DC DC CONVERTER 5V 1.5W | DC DC CONVERTER 5V 1.5W |
| Series | Bellnix Co., Ltd. | Bellnix Co., Ltd. | Bellnix Co., Ltd. | Bellnix Co., Ltd. |
| Packaging | Bulk | Bulk | Bulk | Bulk |
