BY399
lmages are for reference only.BY399
DIODE GEN PURP 800V 3A DO201
DatasheetDO-201AA, DO-27, Axial
50,405 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Diode 800 V 3A Through Hole DO-201
BY399
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | Diotec Semiconductor |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 800 V |
| Current - Average Rectified (Io) | 3A |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 3 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 500 ns |
| Current - Reverse Leakage @ Vr | 5 µA @ 800 V |
| Capacitance @ Vr, F | - |
| Mounting Type | Through Hole |
| Package / Case | DO-201AA, DO-27, Axial |
| Supplier Device Package | DO-201 |
| Operating Temperature - Junction | -50°C ~ 150°C |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

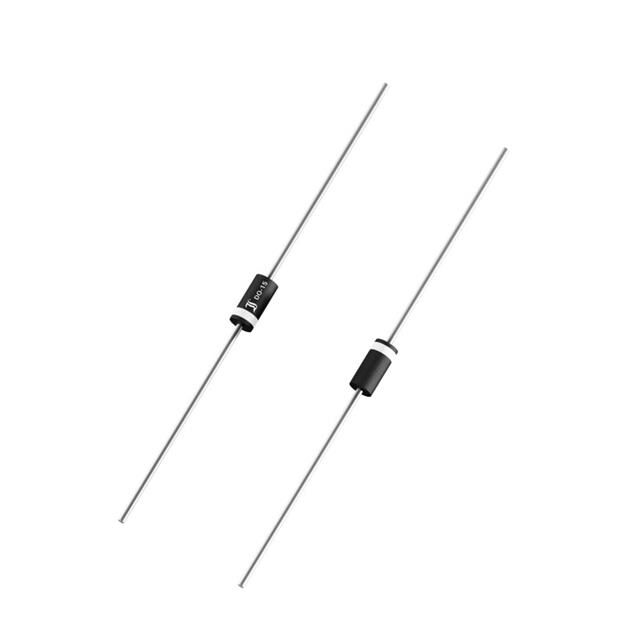

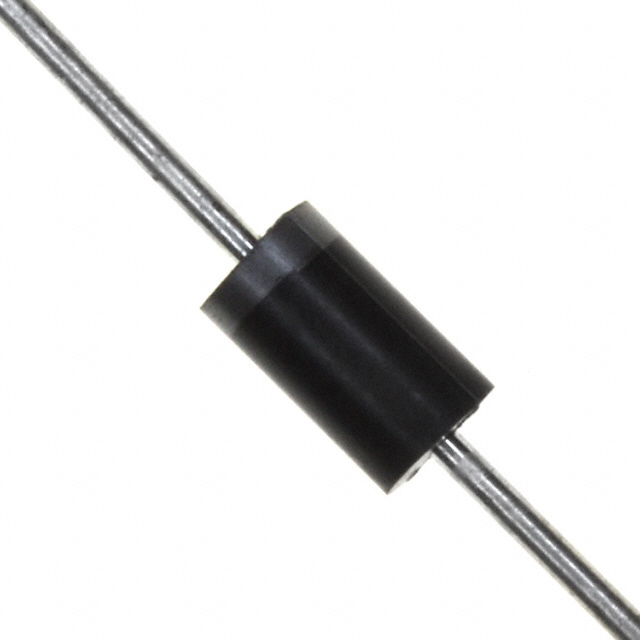

| Part Number | BY396 | BY396P-E3/54 | BY397 | BY397P-E3/54 |
| Manufacturer | Diotec Semiconductor | Vishay General Semiconductor - Diodes Division | Diotec Semiconductor | Vishay General Semiconductor - Diodes Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | DIODE GEN PURP 100V 3A DO201 | DIODE GEN PURP 100V 3A DO201AD | DIODE GEN PURP 200V 3A DO201 | DIODE GEN PURP 200V 3A DO201AD |
| Series | - | - | - | - |
| Packaging | Cut Tape (CT)-->Bulk | Tape & Reel (TR) | Cut Tape (CT)-->Bulk | Tape & Reel (TR) |
