BYH05-100S02

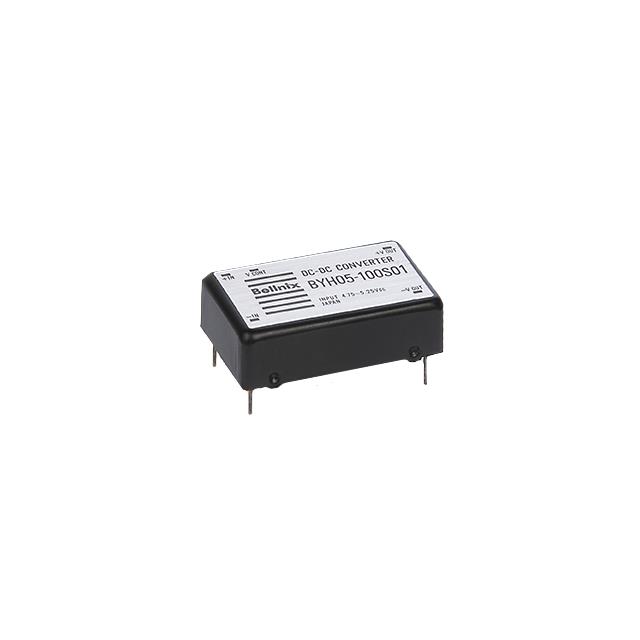

lmages are for reference only.BYH05-100S02
DC DC CONVERTER 100V 200MW
Datasheet24-DIP Module, 5 Leads
74,038 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
High Voltage - Isolated Module DC DC Converter 1 Output 100V 2mA 4.75V - 5.25V Input
BYH05-100S02
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Bellnix Co., Ltd. |
| Series | BYH |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Type | High Voltage - Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.75V |
| Voltage - Input (Max) | 5.25V |
| Voltage - Output 1 | 100V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 2mA |
| Power (Watts) | 200 mW |
| Applications | ITE (Commercial) |
| Features | Adjustable Output |
| Operating Temperature | -10°C ~ 60°C (With Derating) |
| Efficiency | - |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 24-DIP Module, 5 Leads |
| Size / Dimension | 1.28" L x 0.80" W x 0.41" H (32.6mm x 20.4mm x 10.3mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | BYH05 |
| Voltage - Isolation | 250 V |
| Product Attribute |  |
 |
 |
|
| Part Number | BYH05-200S01 | BY05-05S20H | BY05-05S30L | BY05-05S30L |
| Manufacturer | Bellnix Co., Ltd. | Bellnix Co., Ltd. | Bellnix Co., Ltd. | Bellnix Co., Ltd. |
| RoHS Status | RoHS Compliant | ROHS3 Compliant | RoHS Compliant | RoHS Compliant |
| Description | DC DC CONVERTER 200V 200MW | DC DC CONVERTER 5V 1W | DC DC CONVERTER 5V 1.5W | DC DC CONVERTER 5V 1.5W |
| Series | Bellnix Co., Ltd. | Bellnix Co., Ltd. | Bellnix Co., Ltd. | Bellnix Co., Ltd. |
| Packaging | Bulk | Bulk | Bulk | Bulk |
