BYM13-60-E3/96

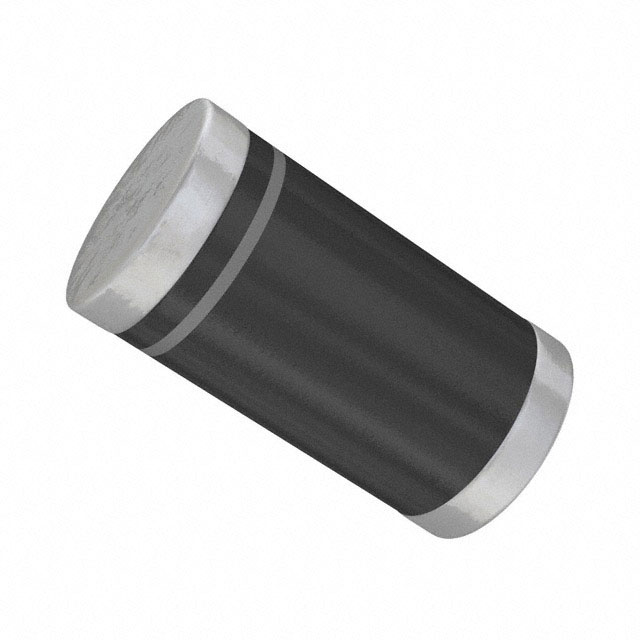

lmages are for reference only.BYM13-60-E3/96
DIODE SCHOTTKY 60V 1A GL41
DatasheetDO-213AB, MELF
96,740 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Diode 60 V 1A Surface Mount DO-213AB (GL41)
BYM13-60-E3/96
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 60 V |
| Current - Average Rectified (Io) | 1A |
| Voltage - Forward (Vf) (Max) @ If | 700 mV @ 1 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 500 µA @ 60 V |
| Capacitance @ Vr, F | 80pF @ 4V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | DO-213AB, MELF |
| Supplier Device Package | DO-213AB (GL41) |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Base Product Number | BYM13 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | BYM13-60-E3/97 | BYM10-100-E3/96 | BYM10-100-E3/97 | BYM10-1000-E3/96 |
| Manufacturer | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DIODE SCHOTTKY 60V 1A GL41 | DIODE GEN PURP 100V 1A DO213AB | DIODE GEN PURP 100V 1A DO213AB | DIODE GEN PURP 1KV 1A DO213AB |
| Series | - | SUPERECTIFIER® | SUPERECTIFIER® | SUPERECTIFIER® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
