BZD17C100P

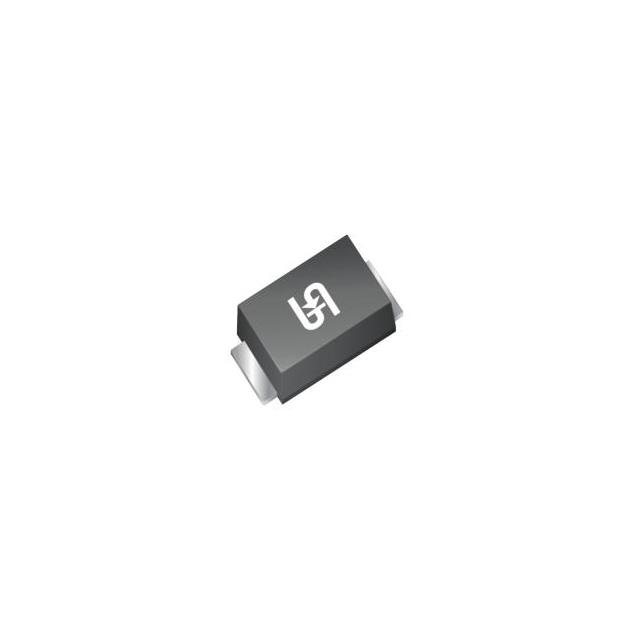

lmages are for reference only.BZD17C100P
DIODE ZENER 100V 800MW SUB SMA
DatasheetSOD-123
76,976 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Zener Diode 100 V 800 mW ±6% Surface Mount Sub SMA
BZD17C100P
| Category | Discrete Semiconductor Products - Diodes - Zener |
| Manufacturer | Taiwan Semiconductor Corporation |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Voltage - Zener (Nom) (Vz) | 100 V |
| Tolerance | ±6% |
| Power - Max | 800 mW |
| Impedance (Max) (Zzt) | 200 Ohms |
| Current - Reverse Leakage @ Vr | 1 µA @ 75 V |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 200 mA |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SOD-123 |
| Supplier Device Package | Sub SMA |
| Base Product Number | BZD17 |
| Product Attribute |  |
 |
|
|
| Part Number | BZD17C100P RVG | BZD17C100P-E3-08 | BZD17C100P-E3-18 | BZD17C100PH |
| Manufacturer | Taiwan Semiconductor Corporation | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Taiwan Semiconductor Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DIODE ZENER 100V 800MW SUB SMA | DIODE ZENER 100V 800MW DO219AB | DIODE ZENER 100V 800MW DO219AB | DIODE ZENER 100V 1W SUB SMA |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
