BZM55B75-TR
lmages are for reference only.BZM55B75-TR
DIODE ZENER 75V 500MW MICROMELF
Datasheet2-SMD, No Lead
96,805 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Zener Diode 75 V 500 mW Surface Mount MicroMELF
BZM55B75-TR
| Category | Discrete Semiconductor Products - Diodes - Zener |
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Series | BZM55 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Voltage - Zener (Nom) (Vz) | 75 V |
| Tolerance | - |
| Power - Max | 500 mW |
| Impedance (Max) (Zzt) | 1500 Ohms |
| Current - Reverse Leakage @ Vr | 100 nA @ 56 V |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 200 mA |
| Operating Temperature | -65°C ~ 175°C |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, No Lead |
| Supplier Device Package | MicroMELF |
| Base Product Number | BZM55B75 |
| Product Attribute |  |
 |
 |
 |

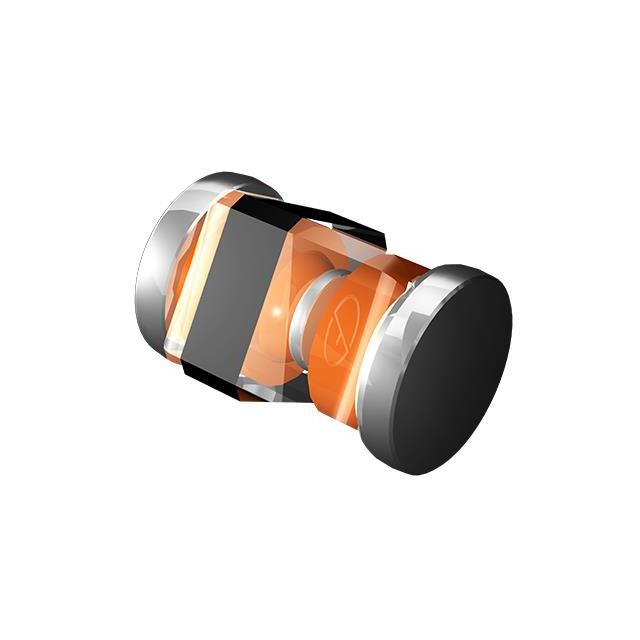

| Part Number | BZM55B75-TR3 | BZM55-B11 | BZM55-B3V3 | BZM55-B4V7 |
| Manufacturer | Vishay General Semiconductor - Diodes Division | Good-Ark Semiconductor | Good-Ark Semiconductor | Good-Ark Semiconductor |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DIODE ZENER 75V 500MW MICROMELF | DIODE ZENER 11V 500MW MICROMELF | DIODE ZENER 3.3V 500MW MICROMELF | DIODE ZENER 4.7V 500MW MICROMELF |
| Series | BZM55 | - | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
