BZV55-B5V6,115

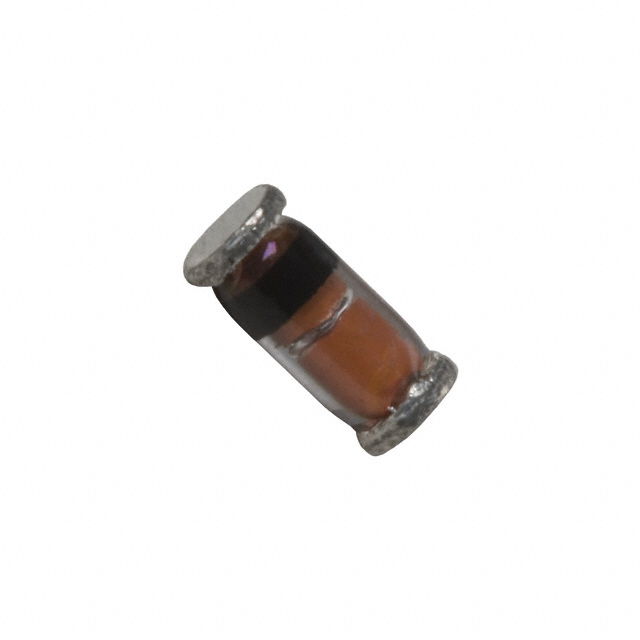

lmages are for reference only.BZV55-B5V6,115
DIODE ZENER 5.6V 500MW LLDS
DatasheetDO-213AC, MINI-MELF, SOD-80
98,813 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Zener Diode 5.6 V 500 mW ±2% Surface Mount LLDS; MiniMelf
BZV55-B5V6,115
| Category | Discrete Semiconductor Products - Diodes - Zener |
| Manufacturer | NXP Semiconductors |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Voltage - Zener (Nom) (Vz) | 5.6 V |
| Tolerance | ±2% |
| Power - Max | 500 mW |
| Impedance (Max) (Zzt) | 40 Ohms |
| Current - Reverse Leakage @ Vr | 1 µA @ 2 V |
| Voltage - Forward (Vf) (Max) @ If | 900 mV @ 10 mA |
| Operating Temperature | -65°C ~ 200°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | DO-213AC, MINI-MELF, SOD-80 |
| Supplier Device Package | LLDS; MiniMelf |
| Base Product Number | - |
| Product Attribute | |
 |
|
 |
| Part Number | BZV55-B5V6,115 | BZV55-B5V6,135 | BZV55-B5V6,135 | BZV55-B51,115 |
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | NXP USA Inc. | Nexperia USA Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DIODE ZENER 5.6V 500MW LLDS | DIODE ZENER 5.6V 500MW LLDS | DIODE ZENER 5.6V 500MW LLDS | DIODE ZENER 51V 500MW LLDS |
| Series | - | - | * | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Bulk | Tape & Reel (TR)-->Cut Tape (CT) |
