BZW06-145

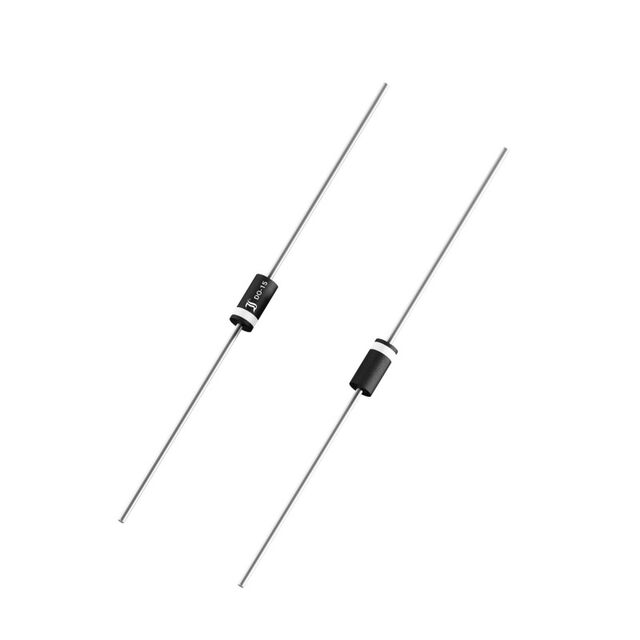

lmages are for reference only.BZW06-145
TVS DIODE 145VWM 234VC DO-204AC
DatasheetDO-204AC, DO-15, Axial
84,107 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
234V Clamp 2.6A Ipp Tvs Diode Through Hole DO-204AC (DO-15)
BZW06-145
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Diotec Semiconductor |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 145V |
| Voltage - Breakdown (Min) | 162V |
| Voltage - Clamping (Max) @ Ipp | 234V |
| Current - Peak Pulse (10/1000µs) | 2.6A |
| Power - Peak Pulse | 600W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -50°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | DO-204AC, DO-15, Axial |
| Supplier Device Package | DO-204AC (DO-15) |
| Base Product Number | - |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | BZW06-14 | BZW06-145B | BZW06-14B | BZW06-10 |
| Manufacturer | Diotec Semiconductor | Diotec Semiconductor | Diotec Semiconductor | Diotec Semiconductor |
| RoHS Status | ||||
| Description | TVS DIODE 13.6VWM 22.5VC DO204AC | TVS DIODE 145VWM 234VC DO-204AC | TVS DIODE 13.6VWM 22.5VC DO204AC | TVS DO15 175DEG 10.2V 600W |
| Series | Diotec Semiconductor | Diotec Semiconductor | Diotec Semiconductor | Diotec Semiconductor |
| Packaging | Bulk | Bulk | Bulk | Cut Tape (CT)-->Bulk |
