BZW06-20B

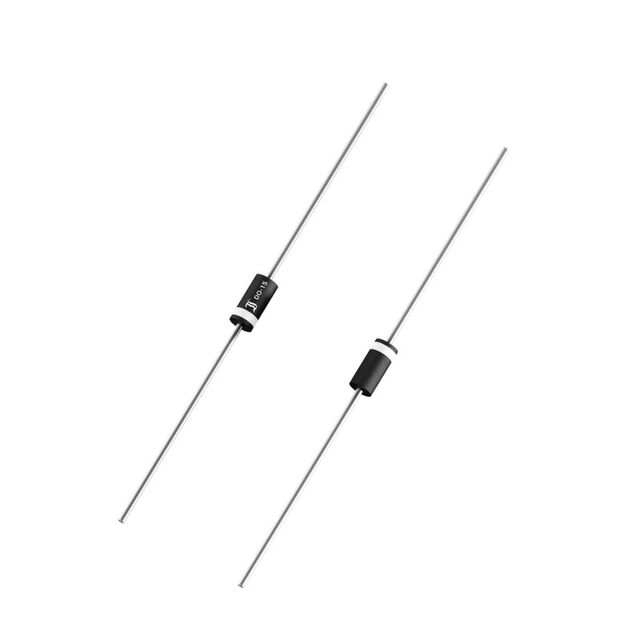

lmages are for reference only.BZW06-20B
TVS DIODE 20.5VWM 33.2VC DO204AC
DatasheetDO-204AC, DO-15, Axial
99,734 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
33.2V Clamp 18A Ipp Tvs Diode Through Hole DO-204AC (DO-15)
BZW06-20B
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Diotec Semiconductor |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 20.5V |
| Voltage - Breakdown (Min) | 22.8V |
| Voltage - Clamping (Max) @ Ipp | 33.2V |
| Current - Peak Pulse (10/1000µs) | 18A |
| Power - Peak Pulse | 600W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -50°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | DO-204AC, DO-15, Axial |
| Supplier Device Package | DO-204AC (DO-15) |
| Base Product Number | - |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
|
 |
| Part Number | BZW06-20 | BZW06-20 | BZW06-20B | BZW06-20B-AQ |
| Manufacturer | Diotec Semiconductor | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Diotec Semiconductor |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | TVS DIODE 20.5VWM 33.2VC DO204AC | TVS DIODE 20.5VWM 42.8VC DO204AC | TVS DIODE 20.5VWM 42.8VC DO204AC | TVS DIODE 20.5VWM 33.2VC DO204AC |
| Series | Diotec Semiconductor | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Diotec Semiconductor |
| Packaging | Bulk | Tape & Reel (TR) | Tape & Reel (TR) | Bulk |
