Product CatalogPart Number
C3M0045075K1
Manufacturer
Wolfspeed, Inc.Description
SICFET N-CH 750V 42A TO247
Datasheet
DatasheetPackage
TO-247-4
In Stock
92,969 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
C3M0045075K1
C3M0045075K1
lmages are for reference only.Payment Methods
Delivery Services
N-Channel 750 V 42A (Tc) 139W (Tc) Through Hole TO-247-4L
Quick Inquiry
C3M0045075K1
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Wolfspeed, Inc. |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| FET Type | N-Channel |
| Technology | SiCFET (Silicon Carbide) |
| Drain to Source Voltage (Vdss) | 750 V |
| Current - Continuous Drain (Id) @ 25°C | 42A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 15V |
| Rds On (Max) @ Id, Vgs | 60mOhm @ 17.6A, 15V |
| Vgs(th) (Max) @ Id | 3.8V @ 4.84mA |
| Vgs (Max) | -8V, +19V |
| Input Capacitance (Ciss) (Max) @ Vds | 1606 pF @ 500 V |
| FET Feature | - |
| Power Dissipation (Max) | 139W (Tc) |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-247-4L |
| Package / Case | TO-247-4 |
| Base Product Number | C3M0045075 |
| Gate Charge (Qg) (Max) @ Vgs | 65 nC @ 15 V |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
|
 |
 |

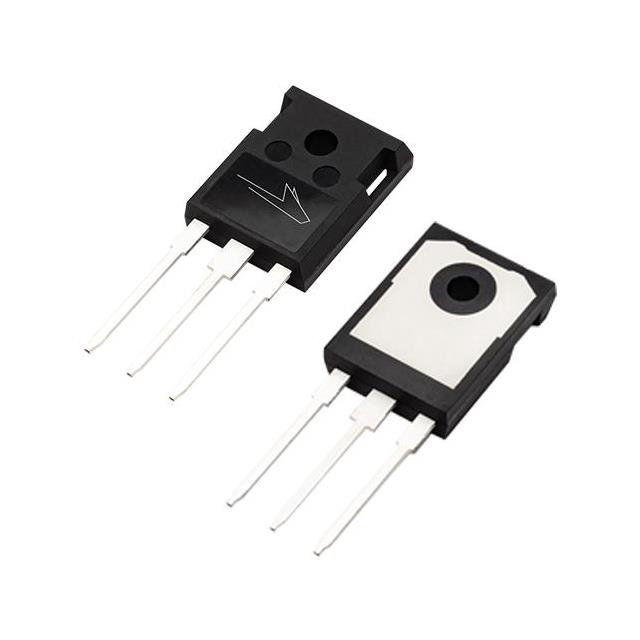

| Part Number | C3M0040120D | C3M0040120J1 | C3M0040120J1-TR | C3M0040120J2-TR |
| Manufacturer | Wolfspeed, Inc. | Wolfspeed, Inc. | Wolfspeed, Inc. | Wolfspeed, Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | 1200V 40MOHM SIC MOSFET | 1200V 40 M SIC MOSFET | 1200V 40 M SIC MOSFET | WOLFSPEED SIC, MOSFET |
| Series | C3M™ | C3M™ | C3M™ | - |
| Packaging | Tube | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
