Product CatalogPart Number
CAB7R5A23GM4T
Manufacturer
Wolfspeed, Inc.Description
MOSFET 2N-CH 2300V 150A
Datasheet
DatasheetPackage
Module
In Stock
91,261 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation

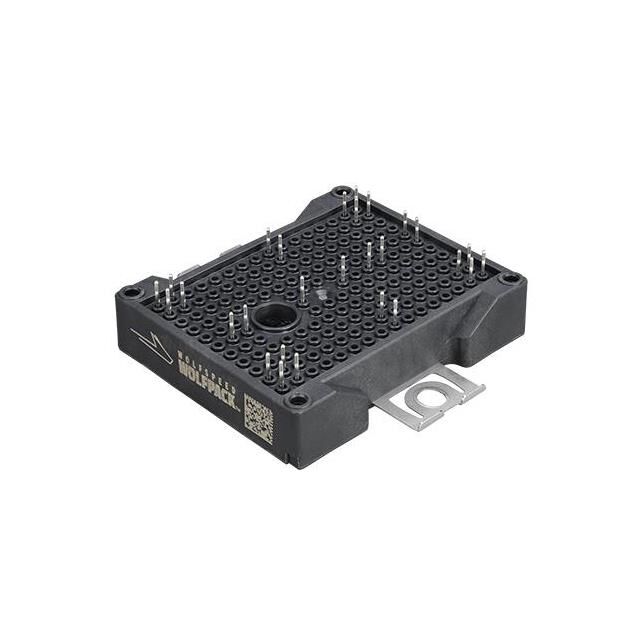

CAB7R5A23GM4T
CAB7R5A23GM4T
lmages are for reference only.Payment Methods
Delivery Services
Mosfet Array 2300V (2.3kV) 150A 510W Chassis Mount
Quick Inquiry
CAB7R5A23GM4T
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Wolfspeed, Inc. |
| Series | - |
| Packaging | Box |
| RoHS Status | |
| Technology | Silicon Carbide (SiC) |
| Configuration | 2 N-Channel (Half Bridge) |
| FET Feature | Silicon Carbide (SiC) |
| Drain to Source Voltage (Vdss) | 2300V (2.3kV) |
| Current - Continuous Drain (Id) @ 25°C | 150A |
| Rds On (Max) @ Id, Vgs | 10.5mOhm @ 160A, 15V |
| Vgs(th) (Max) @ Id | 4V @ 76mA |
| Gate Charge (Qg) (Max) @ Vgs | 590nC @ 15V |
| Input Capacitance (Ciss) (Max) @ Vds | 24400pF @ 1.5kV |
| Power - Max | 510W |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount |
| Package / Case | Module |
| Supplier Device Package | - |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
|
 |
| Part Number | CAB7R5A23GM4 | CAB003M09DM3 | CAB004M12GM4 | CAB004M12GM4T |
| Manufacturer | Wolfspeed, Inc. | Wolfspeed, Inc. | Wolfspeed, Inc. | Wolfspeed, Inc. |
| RoHS Status | ||||
| Description | MOSFET 2N-CH 2300V 150A | MOSFET 2N-CH 900V 518A MODULE | SIC, MODULE, 4M, 1200V, 48 MM, G | SIC, MODULE, 4M, 1200V, 48 MM, G |
| Series | - | - | - | - |
| Packaging | Box | Bulk | Box | Box |
