Product CatalogPart Number
CBC2518T101MV
Manufacturer
Taiyo YudenDescription
FIXED IND 100UH 125MA 4.81OHM SM
Datasheet
DatasheetPackage
1007 (2518 Metric)
In Stock
58,461 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
CBC2518T101MV
CBC2518T101MV
lmages are for reference only.Payment Methods
Delivery Services
100 µH Unshielded Drum Core, Wirewound Inductor 125 mA 4.81Ohm Max 1007 (2518 Metric)
Quick Inquiry
CBC2518T101MV
Specifications
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Taiyo Yuden |
| Series | CB, C Type |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 100 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 125 mA |
| Current - Saturation (Isat) | 160mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 4.81Ohm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 9MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 796 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1007 (2518 Metric) |
| Supplier Device Package | - |
| Size / Dimension | 0.098" L x 0.071" W (2.50mm x 1.80mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | CBC2518T101M | CBC2518T100K | CBC2518T100KV | CBC2518T100M |
| Manufacturer | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 100UH 170MA 4.81OHM SM | FIXED IND 10UH 680MA 468MOHM SMD | FIXED IND 10UH 375MA 468MOHM SMD | FIXED IND 10UH 680MA 468MOHM SMD |
| Series | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden | Taiyo Yuden |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
Customers Also Interested in
Recommended Products
CBC2518T100K
Taiyo Yuden
CBC2518T100KV
Taiyo Yuden
CBC2518T100M
Taiyo Yuden
CBC2518T100MV
Taiyo Yuden
CBC2518T101K
Taiyo Yuden
CBC2518T101KV
Taiyo Yuden
CBC2518T101M
Taiyo Yuden
CBC2518T150K
Taiyo Yuden
CBC2518T150KV
Taiyo Yuden
CBC2518T150M
Taiyo Yuden
CBC2518T150M
Taiyo Yuden
CBC2518T150MV
Taiyo Yuden
CBC2518T151K
Taiyo Yuden
CBC2518T151KV
Taiyo Yuden

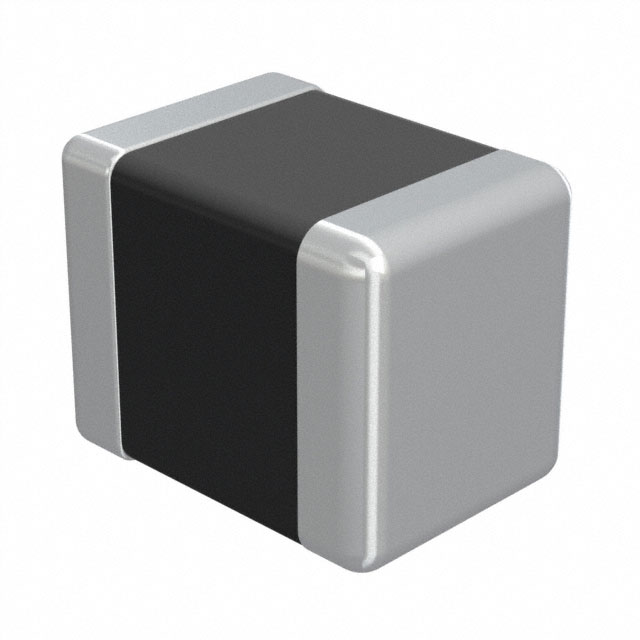

CBC2518T151M
