CC2824B475R-10

CC2824B475R-10

CC2824B475R-10

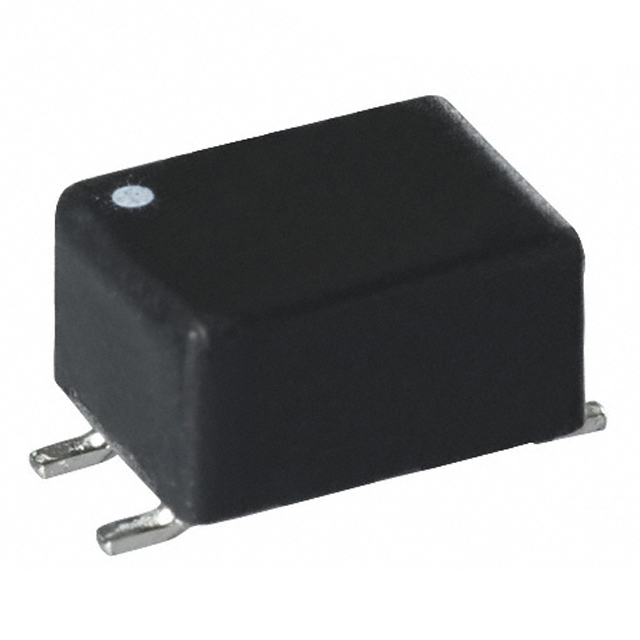

lmages are for reference only.
  • Part Number

    CC2824B475R-10

  • Manufacturer

    Laird-Signal Integrity Products
  • Description

    CMC 4.7MH 400MA 2LN 12.3KOHM SMD

  • Datasheet

    DatasheetDatasheet
  • Package

    Horizontal, 4 Flat Lead

  • In Stock

    91,339 piece(s)

  • Unit Price

    Please Contact Us

  • Lead Time

    Can Ship Immediately

Request for Quotation

  • Payment Methods

  • Delivery Services

4.7 mH @ 10 kHz 2 Line Common Mode Choke Surface Mount 12.3 kOhms @ 2 MHz 400mA DCR 0.55Ohm (Typ)

Quick Inquiry

CC2824B475R-10

Get the Price Now!

Specifications

Category Filters - Common Mode Chokes -
Manufacturer Laird-Signal Integrity Products
Series CC2824
Packaging Tape & Reel (TR)-->Cut Tape (CT)
RoHS Status ROHS3 Compliant
Filter Type Signal Line
Number of Lines 2
Inductance @ Frequency 4.7 mH @ 10 kHz
Current Rating (Max) 400mA
DC Resistance (DCR) (Max) 0.55Ohm (Typ)
Voltage Rating - DC 80V
Voltage Rating - AC 42V
Operating Temperature -40°C ~ 125°C
Ratings -
Approval Agency -
Features -
Mounting Type Surface Mount
Size / Dimension 0.295" L x 0.217" W (7.50mm x 5.50mm)
Height (Max) 0.150" (3.80mm)
Package / Case Horizontal, 4 Flat Lead
Base Product Number -
Impedance @ Frequency 12.3 kOhms @ 2 MHz
Grade -
Qualification -

Parts with Similar Specifications

Product Attribute CC2824B475R-00 CC2824D225R-00 CC2824D225R-10 CC2824E105R-00
Part Number CC2824B475R-00 CC2824D225R-00 CC2824D225R-10 CC2824E105R-00
Manufacturer Laird-Signal Integrity Products Laird-Signal Integrity Products Laird-Signal Integrity Products Laird-Signal Integrity Products
RoHS Status ROHS3 Compliant
Description CMC 4.7MH 400MA 2LN 12.3KOHM SMD CMC 2.2MH 500MA 2LN 5.3KOHM SMD CMC 2.2MH 500MA 2LN 5.3KOHM SMD CMC 1MH 700MA 2LN 4.25KOHM SMD
Series CC CC CC CC
Packaging Tape & Reel (TR) Tape & Reel (TR) Tape & Reel (TR)-->Cut Tape (CT) Tape & Reel (TR)
