CC3135RNMRGKR
lmages are for reference only.CC3135RNMRGKR
IC RF TXRX+MCU WIFI 64VQFN
Datasheet64-VFQFN Exposed Pad
20,752 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
IC RF TxRx + MCU WiFi 802.11a/b/g/n 2.412GHz ~ 2.472GHz, 5.18GHz ~ 5.825GHz 64-VFQFN Exposed Pad
CC3135RNMRGKR
| Category | RF and Wireless - RF Transceiver ICs - |
| Manufacturer | Texas Instruments |
| Series | SimpleLink™ |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | TxRx + MCU |
| RF Family/Standard | WiFi |
| Protocol | 802.11a/b/g/n |
| Modulation | CCK, DSSS, OFDM |
| Frequency | 2.412GHz ~ 2.472GHz, 5.18GHz ~ 5.825GHz |
| Data Rate (Max) | 54Mbps |
| Power - Output | 18.3dBm |
| Sensitivity | -96dBm |
| Memory Size | - |
| Serial Interfaces | SPI, UART |
| GPIO | 2 |
| Voltage - Supply | 2.1V ~ 3.6V |
| Current - Receiving | 61mA |
| Current - Transmitting | 318mA |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 64-VFQFN Exposed Pad |
| Supplier Device Package | 64-VQFN (9x9) |
| Base Product Number | CC3135 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

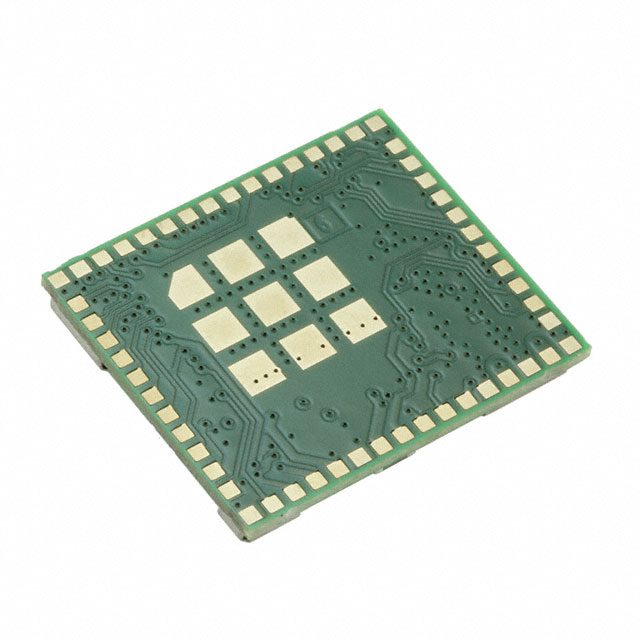

| Part Number | CC3100MODR11MAMOBR | CC3100MODR11MAMOBT | CC3100R11MRGC | CC3100R11MRGCR |
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC RF TXRX+MCU WIFI 63QFM | IC RF TXRX+MCU WIFI 63QFM | IC RF TXRX+MCU WIFI 64VQFN | IC RF TXRX+MCU WIFI 64VQFN |
| Series | SimpleLink™ | SimpleLink™ | SimpleLink™ | SimpleLink™ |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tray | Tape & Reel (TR)-->Cut Tape (CT) |
