CDC5D23BNP-121KC

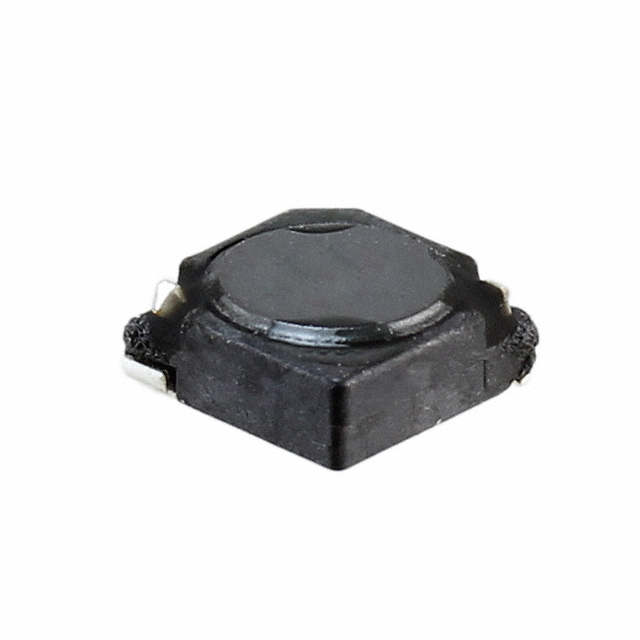

lmages are for reference only.CDC5D23BNP-121KC
FIXED IND 120UH 320MA 1.25OHM SM
DatasheetNonstandard
61,668 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
120 µH Unshielded Inductor 320 mA 1.25Ohm Max Nonstandard
CDC5D23BNP-121KC
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Sumida America Components Inc. |
| Series | CDC5D23B |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 120 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 320 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 1.25Ohm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 100°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.228" L x 0.228" W (5.80mm x 5.80mm) |
| Height - Seated (Max) | 0.098" (2.50mm) |
| Base Product Number | - |
| Product Attribute | |
|
 |
|
| Part Number | CDC5D23BNP-120LC | CDC5D23BNP-120LC | CDC5D23BNP-100LC | CDC5D23BNP-101KC |
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 12UH 960MA 148MOHM SMD | FIXED IND 12UH 960MA 148MOHM SMD | FIXED IND 10UH 1.04A 133MOHM SMD | FIXED IND 100UH 330MA 1.07OHM SM |
| Series | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
