CDEP13D76T150NP-1R0MC-105
lmages are for reference only.CDEP13D76T150NP-1R0MC-105
FIXED IND 1UH 20A 1.98 MOHM SMD
DatasheetNonstandard
62,389 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1 µH Shielded Inductor 20 A 1.98mOhm Nonstandard
CDEP13D76T150NP-1R0MC-105
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Sumida America Components Inc. |
| Series | CDEP13D76/T150 |
| Packaging | Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | - |
| Material - Core | - |
| Inductance | 1 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 20 A |
| Current - Saturation (Isat) | 31A |
| Shielding | Shielded |
| DC Resistance (DCR) | 1.98mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.531" L x 0.531" W (13.50mm x 13.50mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Base Product Number | - |
| Product Attribute | |
|
 |
|

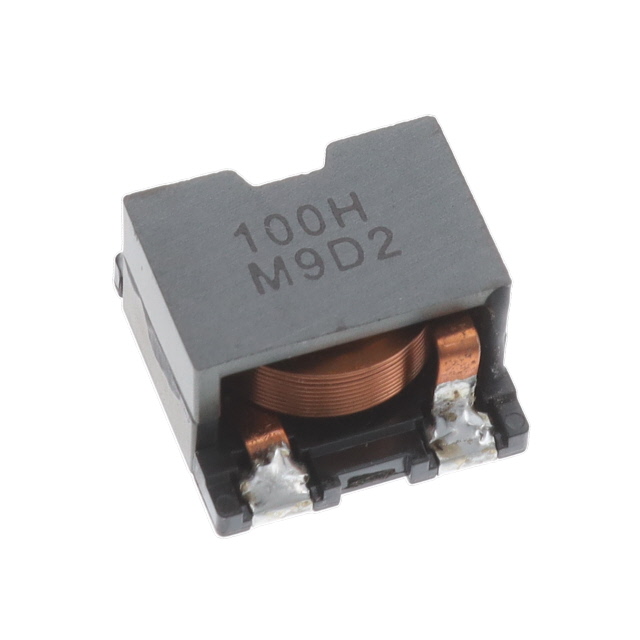

| Part Number | CDEP13D76T150NP-100MC-105 | CDEP13D76T150NP-100MC-105 | CDEP13D76T150NP-100MC-90 | CDEP13D76T150NP-120MC-90 |
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 10UH 8.5A 10.3MOHM SMD | FIXED IND 10UH 8.5A 10.3MOHM SMD | FIXED IND 10UH 7.5A 13.4MOHM SMD | FIXED IND 12.5UH 7A 15.2MOHM SMD |
| Series | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
