CDEP147NP-1R5MC-95

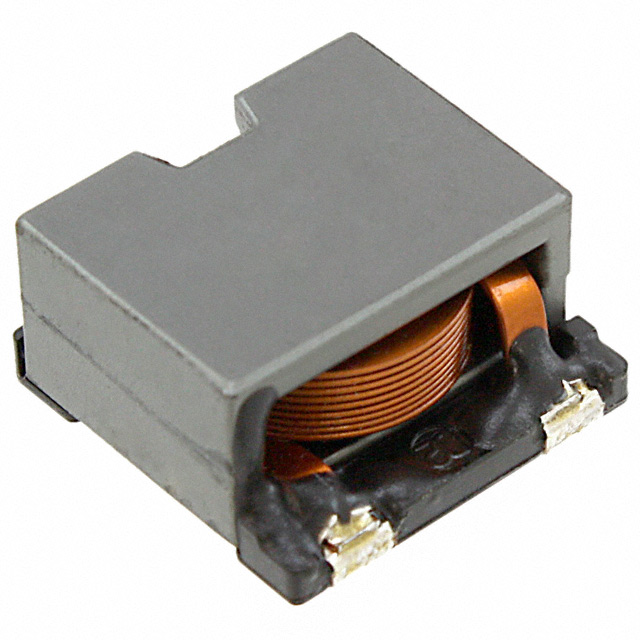

lmages are for reference only.CDEP147NP-1R5MC-95
FIXED IND 1.5UH 20A 2.02MOHM SMD
DatasheetNonstandard
57,728 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1.5 µH Shielded Drum Core, Wirewound Inductor 20 A 2.02mOhm Max Nonstandard
CDEP147NP-1R5MC-95
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Sumida America Components Inc. |
| Series | CDEP147 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 1.5 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 20 A |
| Current - Saturation (Isat) | 27.2A |
| Shielding | Shielded |
| DC Resistance (DCR) | 2.02mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.571" L x 0.571" W (14.50mm x 14.50mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Base Product Number | - |
| Product Attribute |  |
|
 |
|
| Part Number | CDEP147NP-1R1MC-125 | CDEP147NP-1R2MC-73 | CDEP147NP-1R8MC-73 | CDEP147NP-1R8MC-73 |
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 1.1UH 21.5A 1.46 MOHM | FIXED IND 1.2UH 20A 2.02MOHM SMD | FIXED IND 1.8UH 17.5A 3.23 MOHM | FIXED IND 1.8UH 17.5A 3.23 MOHM |
| Series | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
