CDH115NP-100MC
lmages are for reference only.CDH115NP-100MC
FIXED IND 10UH 3A 28 MOHM SMD
DatasheetNonstandard
51,300 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
10 µH Unshielded Drum Core, Wirewound Inductor 3 A 28mOhm Max Nonstandard
CDH115NP-100MC
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Sumida America Components Inc. |
| Series | CDH115 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 10 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 3 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 28mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 100°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.441" L x 0.433" W (11.20mm x 11.00mm) |
| Height - Seated (Max) | 0.205" (5.20mm) |
| Base Product Number | - |
| Product Attribute | |
 |
|
|

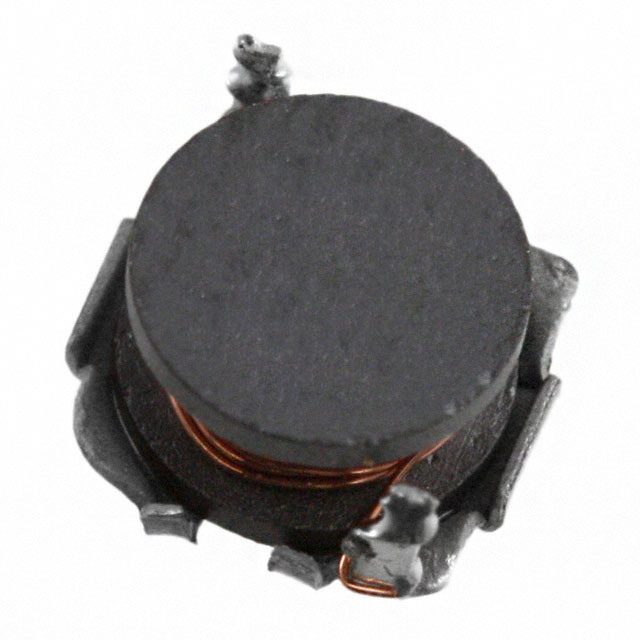

| Part Number | CDH115NP-100MC | CDH115NP-101KC | CDH115NP-101KC | CDH115NP-101KC |
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 10UH 3A 28 MOHM SMD | FIXED IND 100UH 960MA 260MOHM SM | FIXED IND 100UH 960MA 260MOHM SM | FIXED IND 100UH 960MA 260MOHM SM |
| Series | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
