CDH74NP-271JC

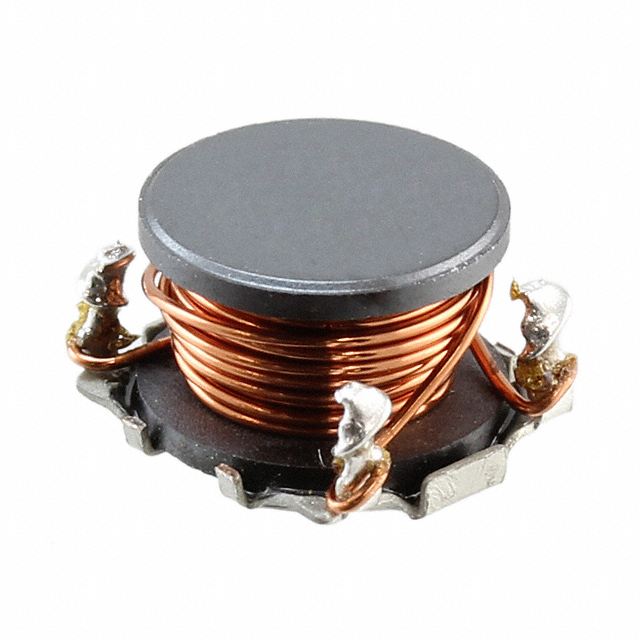

lmages are for reference only.CDH74NP-271JC
FIXED IND 270UH 480MA 1.38OHM SM
DatasheetNonstandard
17,718 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
270 µH Unshielded Drum Core, Wirewound Inductor 480 mA 1.38Ohm Max Nonstandard
CDH74NP-271JC
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Sumida America Components Inc. |
| Series | CDH74 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 270 µH |
| Tolerance | ±5% |
| Current Rating (Amps) | 480 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 1.38Ohm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 100°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.315" L x 0.287" W (8.00mm x 7.30mm) |
| Height - Seated (Max) | 0.205" (5.20mm) |
| Base Product Number | - |
| Product Attribute | |
 |
|
 |
| Part Number | CDH74NP-271JC | CDH74NP-100LC | CDH74NP-100LC | CDH74NP-101JC |
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 270UH 480MA 1.38OHM SM | FIXED IND 10UH 2.75A 56 MOHM SMD | FIXED IND 10UH 2.75A 56 MOHM SMD | FIXED IND 100UH 810MA 550MOHM SM |
| Series | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
