Product CatalogPart Number
CDMM2M50D4000DEF
Manufacturer
Vishay TechnoDescription
CDMM, 2-SIDED, SOLDER COATED BRO
Datasheet
DatasheetPackage
4527 J-Lead
In Stock
68,774 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
CDMM2M50D4000DEF
CDMM2M50D4000DEF

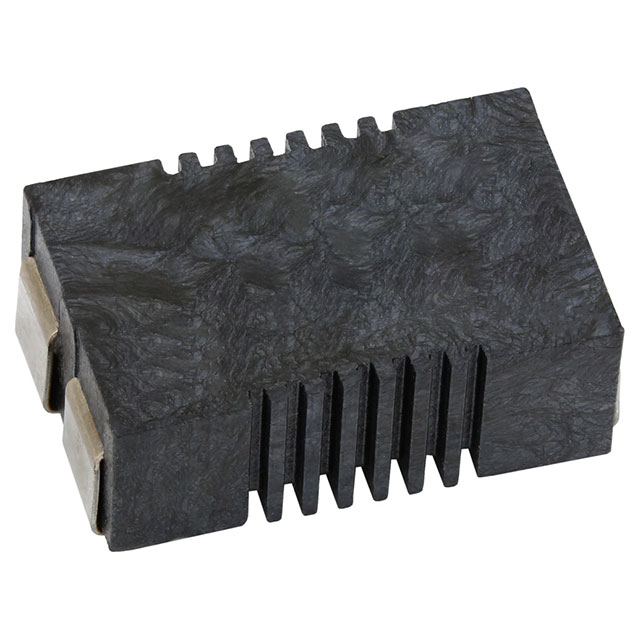

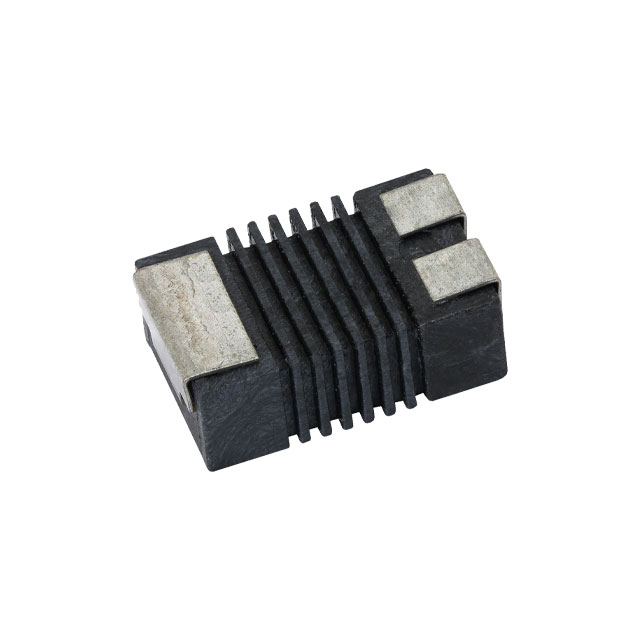

lmages are for reference only.Payment Methods
Delivery Services
2.5M Ohm ±0.5% 1.5W Power Per Element Voltage Divider 2 Resistor Network/Array ±100ppm/°C 4527 J-Lead
Quick Inquiry
CDMM2M50D4000DEF
Specifications
| Category | Resistors - Resistor Networks-Arrays - |
| Manufacturer | Vishay Techno |
| Series | CDMM |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Circuit Type | Voltage Divider |
| Resistance (Ohms) | 2.5M |
| Tolerance | ±0.5% |
| Number of Resistors | 2 |
| Resistor Matching Ratio | ±0.5% |
| Resistor-Ratio-Drift | ±10ppm/°C |
| Number of Pins | 3 |
| Power Per Element | 1.5W |
| Temperature Coefficient | ±100ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Grade | - |
| Qualification | - |
| Applications | Automotive AEC-Q200, Voltage Divider (TCR Matched) |
| Mounting Type | Surface Mount |
| Package / Case | 4527 J-Lead |
| Supplier Device Package | 4527 |
| Size / Dimension | 0.455" L x 0.275" W (11.56mm x 6.98mm) |
| Height - Seated (Max) | 0.177" (4.49mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute | |
 |
 |
 |
| Part Number | CDMM2M00F5000DEF | CDMM2M00F5000DET | CDMM2M50D4000DET | CRA06S083200KFTA |
| Manufacturer | Vishay Techno | Vishay Techno | Vishay Techno | Vishay Dale |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CDMM, 2-SIDED, SOLDER COATED BRO | CDMM, 2M, 1%, 500:1, RATIO TOL. | CDMM, 2M50, 0.5%, 400:1, RATIO T | RES ARRAY 4 RES 200K OHM 1206 |
| Series | CDMM | CDMM | CDMM | CRA06 |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
