CDR6D23MNNP-6R1NC
lmages are for reference only.CDR6D23MNNP-6R1NC
FIXED IND 6.1UH 1.8A 66.3MOHM SM
DatasheetNonstandard
70,816 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
6.1 µH Shielded Inductor 1.8 A 66.3mOhm Max Nonstandard
CDR6D23MNNP-6R1NC
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Sumida America Components Inc. |
| Series | CDR6D23MN |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 6.1 µH |
| Tolerance | ±25% |
| Current Rating (Amps) | 1.8 A |
| Current - Saturation (Isat) | 2.3A |
| Shielding | Shielded |
| DC Resistance (DCR) | 66.3mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.256" L x 0.256" W (6.50mm x 6.50mm) |
| Height - Seated (Max) | 0.098" (2.50mm) |
| Base Product Number | - |
| Product Attribute |  |
|
 |
|

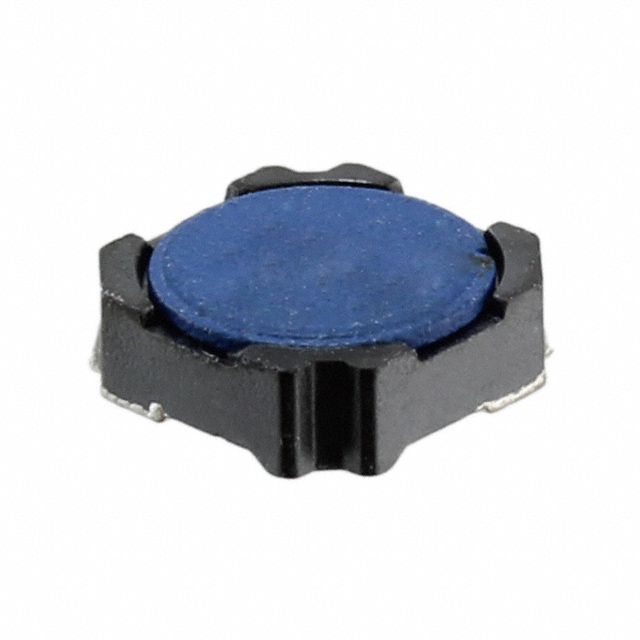

| Part Number | CDR6D23MNNP-0R6NC | CDR6D23MNNP-100NC | CDR6D23MNNP-101NC | CDR6D23MNNP-101NC |
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 600NH 4.6A 20 MOHM SMD | FIXED IND 10UH 1.3A 103.8MOHM SM | FIXED IND 100UH 410MA 903.8 MOHM | FIXED IND 100UH 410MA 903.8 MOHM |
| Series | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
