CDRH2D11/HPNP-6R8NC

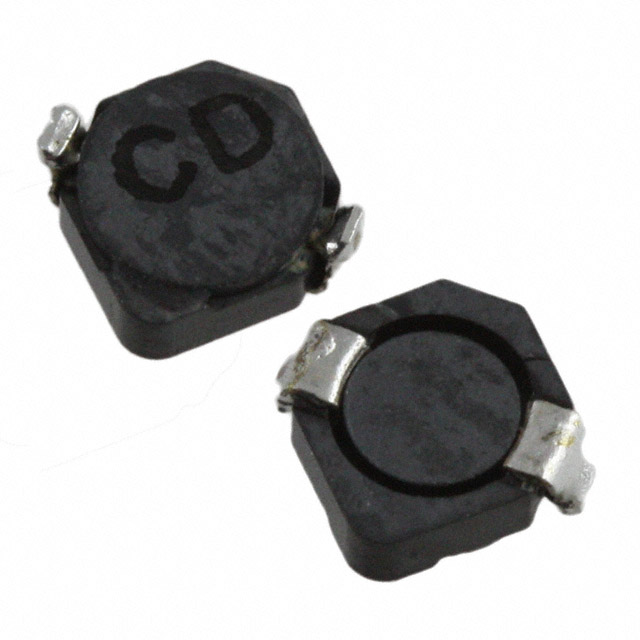

lmages are for reference only.CDRH2D11/HPNP-6R8NC
FIXED IND 6.8UH 650MA 371MOHM SM
DatasheetNonstandard
33,968 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
6.8 µH Shielded Inductor 650 mA 371mOhm Max Nonstandard
CDRH2D11/HPNP-6R8NC
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Sumida America Components Inc. |
| Series | CDRH2D11/HP |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 6.8 µH |
| Tolerance | ±30% |
| Current Rating (Amps) | 650 mA |
| Current - Saturation (Isat) | 630mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 371mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.118" L x 0.118" W (3.00mm x 3.00mm) |
| Height - Seated (Max) | 0.043" (1.10mm) |
| Base Product Number | - |
| Product Attribute | |
 |
|
 |
| Part Number | CDRH2D11/HPNP-6R8NC | CDRH2D11/HPNP-100NC | CDRH2D11/HPNP-1R5NC | CDRH2D11/HPNP-2R2NC |
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 6.8UH 650MA 371MOHM SM | FIXED IND 10UH 520MA 559MOHM SMD | FIXED IND 1.5UH 1.6A 80 MOHM SMD | FIXED IND 2.2UH 1.3A 120MOHM SMD |
| Series | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
