CDRH2D18/HPNP-R56NC

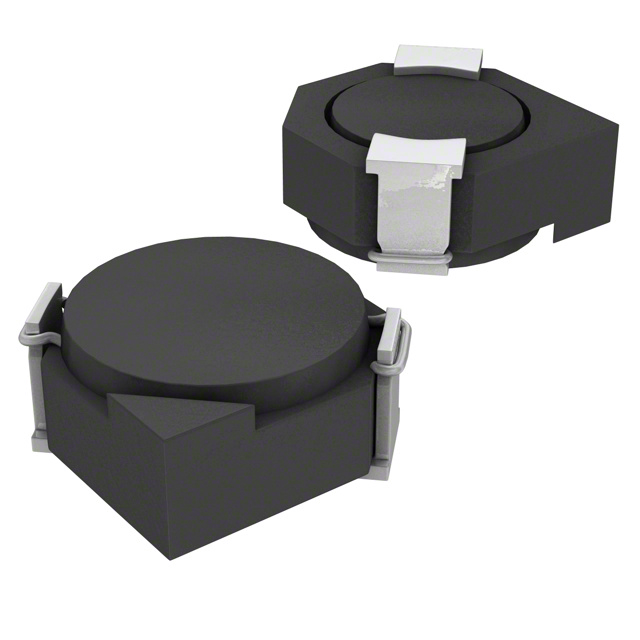

lmages are for reference only.CDRH2D18/HPNP-R56NC
FIXED IND 560NH 3.6A 33 MOHM SMD
DatasheetNonstandard
69,015 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
560 nH Shielded Inductor 3.6 A 33mOhm Max Nonstandard
CDRH2D18/HPNP-R56NC
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Sumida America Components Inc. |
| Series | CDRH2D18/HP |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 560 nH |
| Tolerance | ±35% |
| Current Rating (Amps) | 3.6 A |
| Current - Saturation (Isat) | 3.75A |
| Shielding | Shielded |
| DC Resistance (DCR) | 33mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 7.96 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.118" L x 0.118" W (3.00mm x 3.00mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
|
 |
| Part Number | CDRH2D18/HPNP-100NC | CDRH2D18/HPNP-150NC | CDRH2D18/HPNP-1R1NC | CDRH2D18/HPNP-1R7NC |
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 10UH 900MA 245MOHM SMD | FIXED IND 15UH 640MA 345MOHM SMD | FIXED IND 1.1UH 2.9A 43 MOHM SMD | FIXED IND 1.7UH 2.2A 44 MOHM SMD |
| Series | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
