CDRH5D16F/LDNP-100NC
lmages are for reference only.CDRH5D16F/LDNP-100NC
FIXED IND 10UH 1.9A 78.6MOHM SMD
DatasheetNonstandard
34,010 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
10 µH Shielded Inductor 1.9 A 78.6mOhm Max Nonstandard
CDRH5D16F/LDNP-100NC
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Sumida America Components Inc. |
| Series | CDRH5D16F/LD |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 10 µH |
| Tolerance | ±25% |
| Current Rating (Amps) | 1.9 A |
| Current - Saturation (Isat) | 920mA |
| Shielding | Shielded |
| DC Resistance (DCR) | 78.6mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.205" L x 0.205" W (5.20mm x 5.20mm) |
| Height - Seated (Max) | 0.071" (1.80mm) |
| Base Product Number | - |
| Product Attribute | |
|
|
 |
| Part Number | CDRH5D16F/LDNP-150NC | CDRH5D16F/LDNP-220NC | CDRH5D16F/LDNP-220NC | CDRH5D16F/LDNP-2R2NC |
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

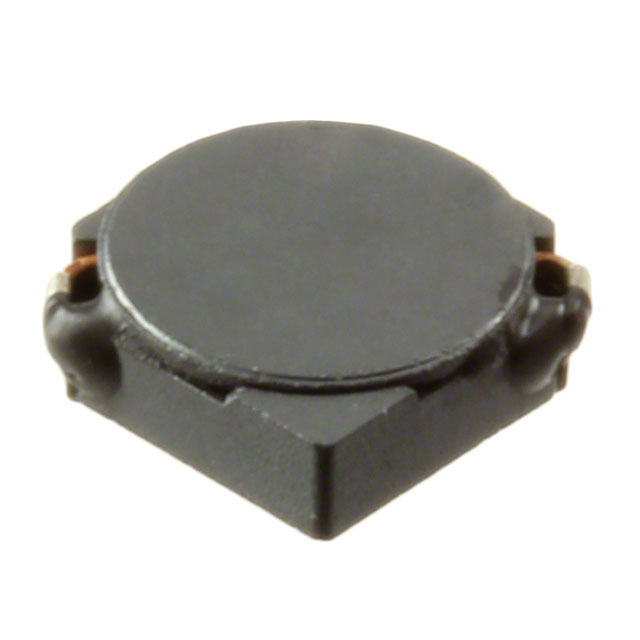

| Description | FIXED IND 15UH 1.5A 110 MOHM SMD | FIXED IND 22UH 1.2A 168 MOHM SMD | FIXED IND 22UH 1.2A 168 MOHM SMD | FIXED IND 2.2UH 3.8A 27 MOHM SMD |
| Series | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
