CDRH73NP-681MC-B

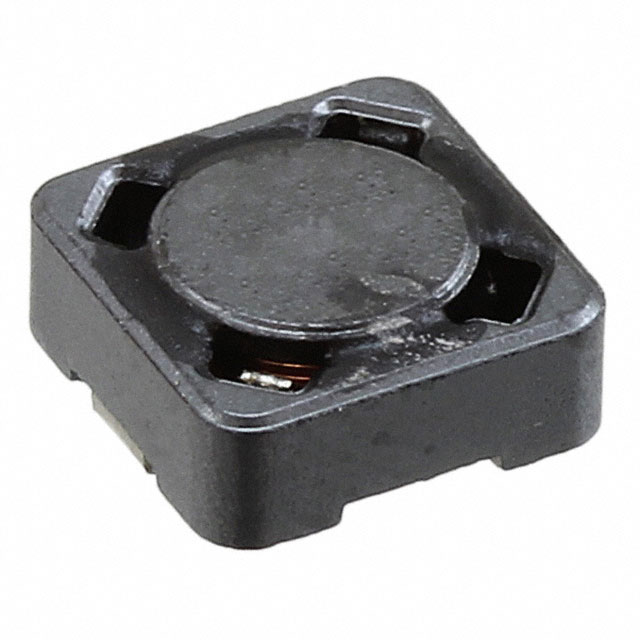

lmages are for reference only.CDRH73NP-681MC-B
FIXED IND 680UH 190MA 5.73OHM SM
DatasheetNonstandard
44,692 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
680 µH Shielded Inductor 190 mA 5.73Ohm Max Nonstandard
CDRH73NP-681MC-B
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Sumida America Components Inc. |
| Series | CDRH73 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 680 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 190 mA |
| Current - Saturation (Isat) | - |
| Shielding | Shielded |
| DC Resistance (DCR) | 5.73Ohm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 100°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.287" L x 0.287" W (7.30mm x 7.30mm) |
| Height - Seated (Max) | 0.134" (3.40mm) |
| Base Product Number | - |
| Product Attribute |  |
|
 |
|
| Part Number | CDRH73NP-680MC-B | CDRH73NP-681MC-B | CDRH73NP-100MC-B | CDRH73NP-101MC-B |
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 68UH 610MA 520MOHM SMD | FIXED IND 680UH 190MA 5.73OHM SM | FIXED IND 10UH 1.68A 72 MOHM SMD | FIXED IND 100UH 500MA 790MOHM SM |
| Series | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
